Sony DCR-DVD 108 DVD Laser Replacement

Escrito Por: Elijah DeWolf
  • Comentários: 2
Sony DCR-DVD 108 DVD Laser Replacement

Dificuldade

Moderate

Passos

7

Tempo necessário

No estimate

Introdução

The laser is what reads the data from a DVD. It is a small and fragile component which may become misaligned, or dirty; cleaning before full replacement is advised.

  1. CCQLenRsaEkcAohe

    • Open the DVD reader and remove the 4.3mm Phillips screw.

  2. E4EaUtT2ehZKlG2y

    • Remove black shield with a plastic spudger.

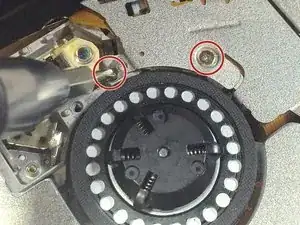

  3. QTwo3hQtHHtJUxKj

    • Remove the two 2.8mm Phillips screws pictured.

  4. iRmD6DNAXNAMisbB

    • Next remove the underlying silver colored shield with a plastic spudger.

  5. AraPWxmNPSRoAE4y

    • With tweezers, gently remove the DVD laser, and expose solder leads.

  6. jeOVZPqcIxvUtFL1

  7. MMCbT1SUumjnCLx6

    • Once solder leads are removed, and solder iron has been safely put away, you my know handle and replace DVD laser. Full replacement follows the steps provided in reverse.

Conclusão

To reassemble your device, follow these instructions in reverse order.
