Introdução
If your Lenovo IdeaPad is overheating, large charging times, and is crashing often then a battery replacement might be necessary. Use this guide to replace the hard battery. Before using this guide check if the Lenovo IdeaPad 320-15IKB troubleshooting pages for possible solutions.
Make sure to power off the laptop completely and disconnect the charging adapter before beginning working with any internal components.
Don't forget troubleshooting basics. Before you start any significant repairs to your device, please check the following:
- Outdated software
- Blocked charging port
- Faulty charger
- Restart your laptop
-
-
Remove the following screws securing the lower case:
-
Seven 5 mm-long Phillips #00
-
Three 7 mm-long Phillips #00
-
Two 8 mm-long Phillips #1
-
-
-
Insert an opening tool into the seam between the lower case and chassis.
-
Pry around the entire perimeter until the lower case fully releases.
-
Remove the lower case.
-
-
-

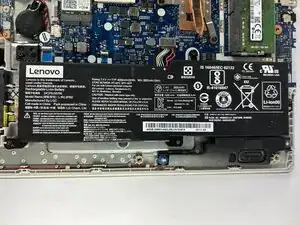

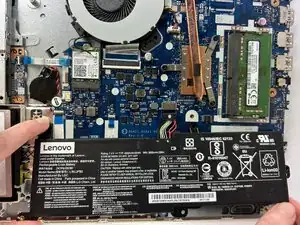

Use a clean fingernail or a spudger to disconnect the battery sliding connector from its motherboard socket.
-
To reassemble your device, follow the above steps in reverse order.
For optimal performance, after completing this guide, calibrate your newly installed battery.
Take your e-waste to an R2 or e-Stewards certified recycler.
