Kaffelogic Nano 7/LINK (A/B/C-N Serial) Thermocouple Replacement

Escrito Por: Kaffelogic
  • Comentários: 0
Kaffelogic Nano 7/LINK (A/B/C-N Serial) Thermocouple Replacement

Dificuldade

Moderate

Passos

10

Tempo necessário

10 minutes

Introdução

Replacement of the thermocouple on any Kaffelogic Nano or Nucleus Link coffee roaster with an A, B, C or N prefix serial number.

  1. nfvSoTpnU4ksHcg6
    nfvSoTpnU4ksHcg6
    6MBXn1MgnMby6MAZ

    • Remove the 6x 2.5mm Hex screws on the left and right side of the roaster.

  2. qHiOtnAKcXjbaGoV
    qHiOtnAKcXjbaGoV
    OTbSwheRLDR1RpCH

    • Hold the roaster steady while removing the plastic top/closure.

    • Panels may spring apart slightly once removed.

  3. 5HgQGHsOcGRtWytG
    5HgQGHsOcGRtWytG
    YsnjyWOviUPEAgsT
    eljWHIrc23oQeaUH

    • Remove the 4x 2.5mm Hex screws on the bottom of the roaster.

  4. bokl2m3pNTLZsgaj
    bokl2m3pNTLZsgaj
    vu3RZpeDAwj1xhOk
    bUSiSNcKCwSERKhY

    • Pull away the front panel carefully.

    • Take care not to damage the buttons while maneuvering the front panel.

  5. CjFpLJRcjntXBWtF
    CjFpLJRcjntXBWtF
    U6CP2AwbVHaHnrnW
    Qasmpv1ohW2EYEcf

    • Stand the roaster up again and pull away the rear panel from the chassis to expose the remaining components.

    • The mains cable is routed through the panel and it will remain attached, place the panel in a soft bag if you wish to protect the paint throughout the rest of your repairs.

  6. fGWinaaqGb6Eel3c
    fGWinaaqGb6Eel3c
    W6b4ElfIDGJTDLtT
    KRFELu4lgyftN5BG

    • Use a 2.0mm slotted screwdriver to remove the thermocouple wires from the PCB-A

  7. OXRwgy6ITIZJXQ6v
    OXRwgy6ITIZJXQ6v
    MXOQpiht24hDxJ4C
    5rwBUPNsWASIskpK

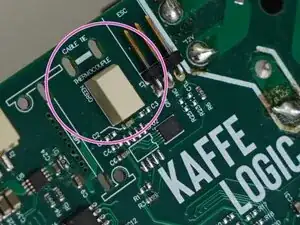

    • If your thermocouple connector looks like this, you will need to follow this step.

    • Use the end of a cable tie or very small plastic spudger to open the contact and remove/insert your thermocouple wires. You may need to trim the cable tie end to fit into the slot.

  8. ZNGdvgbawkgdOF4V
    ZNGdvgbawkgdOF4V
    CtPHF6yBm2kArmOP

    • Carefully unwrap the copper wire used to secure the thermocouple.

    • Later models feature a reusable folded tab, in-place of the copper wire wrap.

  9. sFYrqCEsuVvW2SWe
    sFYrqCEsuVvW2SWe
    bZWvRNaKSIi4ILdW
    absWflCMNu5EjoPW

    • Unwind the thermocouple wire from the earth lead, cut any cable ties used to secure excess wire.

    • Pinch the thermocouple and gently remove it from the tube.

  10. mTAHFRE1QBNKZCOr
    mTAHFRE1QBNKZCOr
    xVNsMlmujUsMnZYE

    • Leave 2mm of thermocouple insulation exposed

    • The thermocouple wires have connections points marked. Take care not to clamp the connector on the insulation.

    • Massage the tape firmly over the thermocouple wires to secure the position.

Conclusão

To reassemble your device, follow these instructions in reverse order.
