Kaffelogic Nano 7/LINK (A/B/C-N Serial) Roast Chamber Replacement

Escrito Por: Kaffelogic
  • Comentários: 0
Kaffelogic Nano 7/LINK (A/B/C-N Serial) Roast Chamber Replacement

Dificuldade

Moderate

Passos

9

Tempo necessário

10 minutes

Introdução

Replacement of the roast chamber on any Kaffelogic Nano or Nucleus Link coffee roaster with an A, B, C or N prefix serial number.

  1. nfvSoTpnU4ksHcg6
    nfvSoTpnU4ksHcg6
    6MBXn1MgnMby6MAZ

    • Remove the 6x 2.5mm Hex screws on the left and right side of the roaster.

  2. qHiOtnAKcXjbaGoV
    qHiOtnAKcXjbaGoV
    OTbSwheRLDR1RpCH

    • Hold the roaster steady while removing the plastic top/closure.

    • Panels may spring apart slightly once removed.

  3. 5HgQGHsOcGRtWytG
    5HgQGHsOcGRtWytG
    YsnjyWOviUPEAgsT
    eljWHIrc23oQeaUH

    • Remove the 4x 2.5mm Hex screws on the bottom of the roaster.

  4. bokl2m3pNTLZsgaj
    bokl2m3pNTLZsgaj
    vu3RZpeDAwj1xhOk
    bUSiSNcKCwSERKhY

    • Pull away the front panel carefully.

    • Take care not to damage the buttons while maneuvering the front panel.

  5. CjFpLJRcjntXBWtF
    CjFpLJRcjntXBWtF
    U6CP2AwbVHaHnrnW
    Qasmpv1ohW2EYEcf

    • Stand the roaster up again and pull away the rear panel from the chassis to expose the remaining components.

    • The mains cable is routed through the panel and it will remain attached, place the panel in a soft bag if you wish to protect the paint throughout the rest of your repairs.

  6. lwYUl3QU3MK4TLXq
    lwYUl3QU3MK4TLXq
    UAMdBIvZDEMKYINZ
    OKngAERHnxwYW2TL

    • Use a 2.0mm slotted screwdriver to remove the thermocouple wires from the PCB-A

  7. EtVXi2DScGPXXXvX
    EtVXi2DScGPXXXvX
    YIOIyW6FCCYPOgw3
    45RAZIeLDGCHYSkR

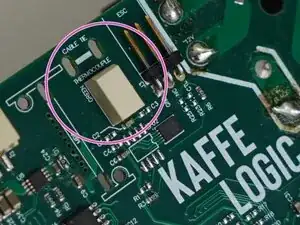

    • If your thermocouple connector looks like this, you will need to follow this step.

    • Use the end of a cable tie or very small plastic spudger to open the contact and remove/insert your thermocouple wires. You may need to trim the cable tie end to fit into the slot.

  8. CgwvOd4SQmmwDVf2
    CgwvOd4SQmmwDVf2
    u3qQSYSC4aEaustB
    XMOxifJv1hndnKIf

    • Use a PH2 screwdriver and adjustable crescent (or 5.5mm wrench) to remove the screw holding the earth leads to the element chamber.

  9. yr3wIqUKsvRaKNnZ
    yr3wIqUKsvRaKNnZ
    OsUpvvylMBdZAPA3

    • Lift the roast chamber upwards, some wiggling may be required.

    • Head through to our wiki for instructions on recalibrating your fan speed after this repair.

    • Nucleus Link anemometer calibration instructions can be found here.

Conclusão

To reassemble your device, follow these instructions in reverse order.
