Framework Laptop 12 Fastener Guide

Escrito Por: Arthur Shi
  • Comentários: 0
Framework Laptop 12 Fastener Guide

Dificuldade

Easy

Passos

10

Tempo necessário

No estimate

Introdução

Did you lose a screw in your Framework Laptop 12? Fear not! Follow this guide to replace your missing screws with the Framework Laptop 12 Fastener Kit.

The Fastener Kit only replaces the non-captive screws in your laptop.

Use the links below to jump to the part and find which screw to use:

  1. w43NiYAiZHDqvQUL
    w43NiYAiZHDqvQUL
    wD3A1lTxdnVJoLRW

    • The Fastener Kit contains the following:

    • Grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head"

    • Silver screws labeled "M1.6 2.5mm fastener with a 3.5mm diameter 0.5mm thick T5 head"

    • Black screws labeled "M1.6 3.5mm fastener with a 3.0mm diameter 1.3mm thick T5 head"

    • Gold screws labeled "M2 2.0mm fastener with a 6.0mm diameter 0.5mm thick T5 head"

    • Silver screws labeled "M2 2.8mm fastener with a 4.0mm diameter 0.5mm thick T5 head"

    • Silver screws labeled "M1.6 4.0mm fastener with a 4.6mm diameter 0.6mm thick T5 head"

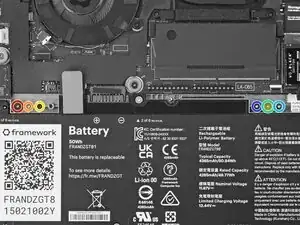

    • Your Framework Laptop comes with a spare screw of each size, attached to the chassis above the battery. You can use the Fastener Kit to replenish any screws you used there.

  2. 24IGvpoKMxwsYgHj
    24IGvpoKMxwsYgHj
    iT11hZfZwSDdIkvK
    A2rnjdXMt2yb6IBj

    • Use the gold screws labeled "M2 2.0mm fastener with a 6.0mm diameter 0.5mm thick T5 head" to secure the antennas.

  3. gOCyQMruoaZOtKO4
    gOCyQMruoaZOtKO4
    hiIgJB4iyZKXlBjq

    • Use the silver screws labeled "M2 2.8mm fastener with a 4.0mm diameter 0.5mm thick T5 head" to secure the display.

    • Tighten the screws until they're snug. Don't over-tighten them, or you may break the screw tabs.

  4. guTXH1wLhGWyQSGu
    guTXH1wLhGWyQSGu
    6lCsvYCANwgkZSR4
    6C14tRiXNhRoMHFg

    • Use the black screws labeled "M1.6 3.5mm fastener with a 3.0mm diameter 1.3mm thick T5 head" to secure the Expansion Card latches.

    • Use the silver screws labeled "M1.6 2.5mm fastener with a 3.5mm diameter 0.5mm thick T5 head" to replace the Expansion Card lock screws.

  5. ZkOwIrFwlQCXbtND
    ZkOwIrFwlQCXbtND
    YJa3Y3FJ1LcVNYyT
    sZ4jdiDQanOJqODZ

    • Use the silver screws labeled "M2 4.0mm fastener with a 4.6mm diameter 0.6mm thick T5 head" to secure the hinges to the Bottom Cover.

  6. Srsofnj5Rk1GNmVm
    Srsofnj5Rk1GNmVm
    U3wWFxPfHKKwkOmp
    QcShFnFf64X3Iwvd

    • Use the gold screws labeled "M2 2.0mm fastener with a 6.0mm diameter 0.5mm thick T5 head" to secure the hinges to the Top Cover.

  7. uACkeyfekWnFWyLZ
    uACkeyfekWnFWyLZ
    lPpWCi3uKStD1iYT

    • Use the grey screw labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head" to secure the Power Button.

  8. CQADJF6uVGJmnHww
    CQADJF6uVGJmnHww
    teCIPxYkQlZeiM4b

    • Use the black screw labeled "M1.6 3.5mm fastener with a 3.0mm diameter 1.3mm thick T5 head" to secure the SSD clip.

  9. BLqpwTLAjkqvwNVW
    BLqpwTLAjkqvwNVW
    wLGhxHwgnxhsLhvv
    yNkwX4HgCCNWwRvV

    • Use the grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head" to secure the touchpad.

    • Use the gold screws labeled "M2 2.0mm fastener with a 6.0mm diameter 0.5mm thick T5 head" to secure the touchpad pogo connector.

  10. 6RshbY3RV5XGJuQg
    6RshbY3RV5XGJuQg
    TueV5cVHhNeSCcoO

    • Use the silver screws labeled "M2 2.8mm fastener with a 4.0mm diameter 0.5mm thick T5 head" to secure the webcam.
