This is a teardown guide for the suction fan unit of the Roborock Dyad Pro Combo 2in1 wet&dry handheld vacuum cleaner.

This is not a teardown for the whole of the Dyad Pro Combo and will focus solely on the fan unit.

  1. PvEvaKVYIVWTkw5R
    PvEvaKVYIVWTkw5R
    tVvTfG6oseHV5Tec
    uFI1vVlJo6DEreBV

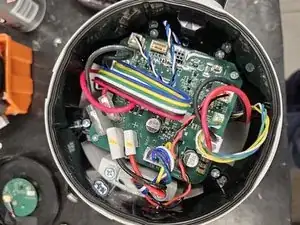

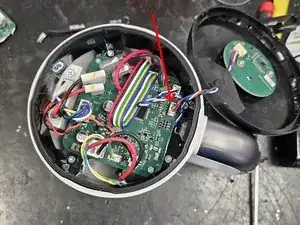

    • Start by grabbing the display and twisting it counter clockwise.

    • This may require a lot or a little bit of force. Eventually it will give and at that point you can lift it up.

    • Once removing the display, remove the cable connecting it.

    clockwise or counter clockwise to open? Picture shows different then the text. EDIT: figured it out: counter clockwise.

    Markus Backes -

    Counter clockwise, my bad. Fixed in the guide.

    DegenFixer -

  2. DID213bOZiMXVTEo
    DID213bOZiMXVTEo
    UDRnaVVMiTtEXHkV

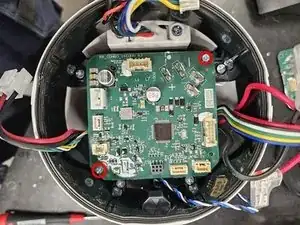

    • Remove all the cables from the motherboard.

    • Then remove the 2 screws and take the motherboard out.

    • Use this as a reference during reassembly or take a better picture yourself.

    Please tell me what is the battery capacity?

    Юрий -

  3. jCmDoOg6TeR1AxdK
    jCmDoOg6TeR1AxdK
    IAUuPCVWVcxVOfg1
    MvGuFvYgBGUAWrnw

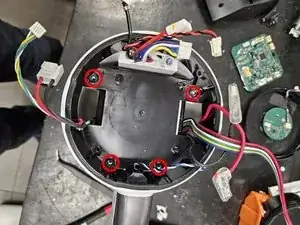

    • Remove the plastic housing.

    • Remove the battery. (It is not held in place by anything. Just pull it out.)

    only 4.000 mAh or is 6.000 mAh also ok?

    Mirko Zinghini -

  4. WnjZ5XjLfG5AKcpr

    • She is always watching.

  5. HJalqZOrIcchscne
    HJalqZOrIcchscne
    nYqK1SapnnvSsv4B
    IRlXVEIW1m3TOaNx

    • Remove the screw from the inside.

    • Use your hand to force a small gap between the handle and the housing.

    • Fit blunt-tipped tweezers or a small flat head screwdriver into the gap.

  6. bl2dajOAFLpWvGRR
    bl2dajOAFLpWvGRR
    fRs1HJWVu5cDN1Ib
    LWxgdQP6VaujXwC1

    • Push it upwards, until it won't re-seat by itself.

    • Push the cable as far into the handle as it will go to prevent damaging it once you get the handle apart.

    • If you do happen to pull a cable from the connector, the last image is a reference to how it's meant to be assembled. Try to reassemble it if you pull a cable out.

  7. TdmNUA2QbXaMuEJ2
    TdmNUA2QbXaMuEJ2
    5vQqXJGmTptD3WPS
    aWlOdg3QTPBVkYoT

    • Remove the handle by defeating the latches using a Plastic card or iFixit's Jimmy.

    • Remove the screws, then remove the black plastic retainer.

    • Remove the grey lever by pulling it off. It is latched onto the main assembly.

  8. X65meSbNFUsEixMN
    X65meSbNFUsEixMN
    5HKJM3doUBZFpr3r
    DXGvympHQuPRPHkW

    • Back inside, remove the 2 screws by the bunch of cables.

    • Move to the outside and force a gap between the main housing and the electrical contacts housing.

    • Use a plastic card to get the rest of the latches to unlatch.

  9. 2O3aMELHQlBAVVip
    2O3aMELHQlBAVVip
    r53rt1GsrWaQToNQ

    • Remove the PCBA and the cable leading from the bottom.

    • Back inside, remove the 4 screws and the black foam on the bottom.

  10. wiBRRIFHFglE1rId
    wiBRRIFHFglE1rId
    vZbn3aimn1Qt5QwH

    • And finally, take it apart.
