Holmes 16 Inch 4-in-1 Fan Teardown

Escrito Por: Nicholas Steele
Publicado em: 18/11/19
  • Comentários: 1

Holmes 16 Inch 4-in-1 Fan Teardown

Publicado em: 18/11/19

Teardown

Introdução

  1. J2T5EiOVKEQFAqRe
    J2T5EiOVKEQFAqRe
    JOQC5AKu3L3QwkVF

    • Remove holding pin on outer part of fan

    • Pull apart front frame from back frame

  2. Xu6vRHJVK3BkBHeM
    Xu6vRHJVK3BkBHeM
    MnDhZoX4TZB2POrh
    mVQZls3Wt1wWh4Cn

    • Remove screws connecting the motor housing to the downrod

    • Detach housing from downrod

    • Note: Oscillation Control will no longer function

  3. cVJxaPVteAmQYBFx
    cVJxaPVteAmQYBFx
    3gWxuRl2FLfxUXkj
    F5EyS2oNcH3Gqrkv

    • Remove Oscillation Control pin

    • Remove back screw

    • Remove Motor Casing

  4. ms1ALE2MTDiPgX2W
    ms1ALE2MTDiPgX2W
    uQAEqJeVrohP2fAI

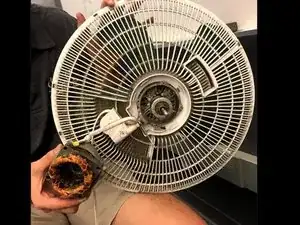

    • Remove the four screws connecting the stator to the rotor. The top two are displayed.

    • Detach the stator from the rotor.

    • Note: the fan will no longer operate.
