B&O Beoplay EX Teardown

Publicado em: 03/06/23

Teardown

Introdução

Look into a High-end true wireless earphone.

  1. njcsxIh4shivISct
    njcsxIh4shivISct
    3sv34AnHx2g6mJYE
    6PVLhfS6rNviHT3x

    • In this cavity, there is a speaker unit and a logic board.

    • The newly designed 9.2mm speaker unit is protected by a transparent cover.

    Was it difficult opening the anterior chamber?

    Chrispy P -

  2. CWRmKq1Z6NxeFhOb
    CWRmKq1Z6NxeFhOb
    tjnbQbTssRDKUycT

    • Insert wisdom here.

  3. ttG2ccvEANXKNTrW
    ttG2ccvEANXKNTrW
    TdX1oS11DWhAIEmC

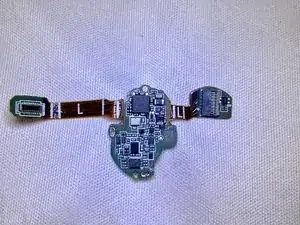

    • Logic board can be apart easily.

  4. 2SvpWOf6XFVStsOP
    2SvpWOf6XFVStsOP
    lDKZmT6DCf1SKbN4

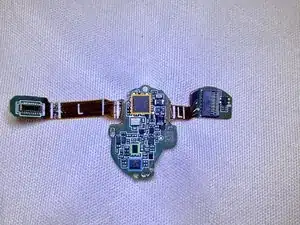

    • RED: EMERALD 4.1 BAS200100

    • Orange: 3460 3 K AWBX

    • Sky blue: CTD L2B

    • Green: 20401 ZOORD

  5. ZFQRmSEbqxfjuZaN
    ZFQRmSEbqxfjuZaN
    RBxVEuTvbxsoegYX

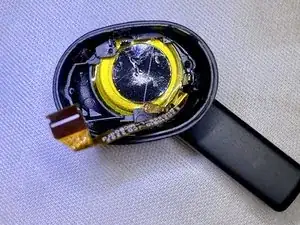

    • Battery was located in a definite different space to the logic board.

    • If you want to change the battery, you have to open the cavity behind.

    Can you see what the battery type / brand is ??

    DH Partner -

    I did not take apart it. However, from another source, I can inform you that the battery is LIR ZJ1254H 3.85V, which was made by Zijing technology. I will update a picture.

    zchenmd -

    Is opening the cavity behind the battery difficult? I already have a set of ifixit tools.

    Chrispy P -

    Is the battery glued into that yellow stuff? How to replace it?

    Alexander Lykke -

  6. odZSpqODGQrmobCd
    odZSpqODGQrmobCd
    A35qT5VTs3HuCDKX
    CDcwwFdaFFJQkKGa

    • Insert wisdom here.

    How do you take the case apart?

    Si Cleaver -

    Used a thin metal pry.

    zchenmd -

  7. VdG2sJrMpBDGhksQ
    VdG2sJrMpBDGhksQ
    VPZRNhZnG5Oyjysm

    • Insert wisdom here.
