Introdução

If your Yamaha piano has the apparently common problem that some keys sometimes sound as if they have been pressed with maximal force/speed even though they have been pressed normally, there might be dust particles between the silicone mats and the printed circuit board (PCB) contacts. This can be mitigated by disassembling the piano and cleaning all silicone mats and PCB contacts.

This guide is just an adaptation of the following comprehensive video instruction to the CLP-645: https://www.youtube.com/watch?v=LbRkqGUm...

  1. JBENJPsQ41NWJrXG
    JBENJPsQ41NWJrXG
    6H3fNB2cW2tViEsY

    • Remove these three screws at the top of the back side.

    • Push the top cover to the front side. It is locked on the inside with a slide mechanism.

    • There is a cable connected to the top cover. Lift the cover carefully and disconnect the cable.

  2. TSANTaerYProQ5rf
    TSANTaerYProQ5rf
    TXTvgYwFCaJpJVuH

    • Remove this clip on the covers rails.

    • Use the new opening on the cover rails to remove the back pins of the key cover. The pins at the front of the cover cannot be moved up to this point. Instead, tilt the cover slightly to remove them from the guide rails at the front (after removing the back side pins).

  3. FVsKFRyOAhGYu1V5
    FVsKFRyOAhGYu1V5
    BE2ewMyS2nBQN22a

    • The decorative key cover at the top of the keys needs to be removed.

    • Remove the screws at the metal connectors.

    • The two screws at the left and right side are slightly different (metal screws); The six screws in the wood are the same.

  4. aYTPQtsLbjU2gOWm
    aYTPQtsLbjU2gOWm
    WbLUTvdOE3H3fguG

    • Remove the computer parts on the left and right of the key board. They are secured with one screw only.

  5. hARKoLYSE4RMNaXN
    hARKoLYSE4RMNaXN
    QdHxKk2VBT3gAFKp
    s1lHWHfAhULTAHJs

    • Disconnect the cable between the keyboard assembly and the main PCB.

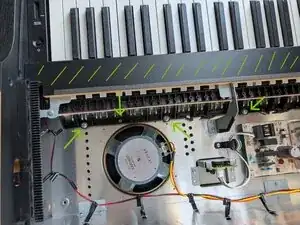

    • Remove the large screws and two small screws on the back side of the keyboard.

    • The keyboard is secured in a guide rail at the front. Push the entire keyboard assembly slightly to the back and take it out the top.

  6. tV1pHU1cDiGJpX5a
    tV1pHU1cDiGJpX5a
    1hAWPZUeoT1e4E4w
    qeugJaSCVbQnWTRY

    • Lay the keyboard assembly on its back. Now, all keys are pressed, which makes it more difficult to remove the PCBs with the silicone mats.

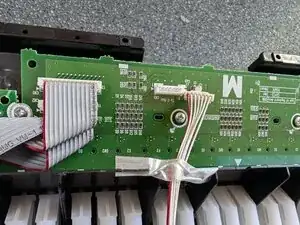

    • Disconnect the cable from the middle PCB.

    • Push up the metal levers to relax the keys and the silicone mats. You can use books or broom stick or similar.

  7. 6OT4IVfbhWqvtGIp
    6OT4IVfbhWqvtGIp
    IgZSSbjkfotGqmt2

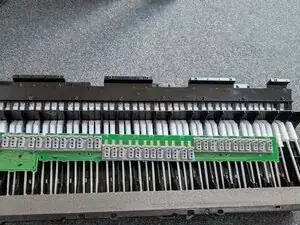

    • Remove the screws from the PCBs and flip over all three at once.

  8. eSUtKnboTSYMiPRW

    • Clean the inside of the silicone mats with contact spray, compressed air or similar. Make sure not to damage the black contacts on the silicone mats.

    • Placing the silicone mats in the keyboard assembly works nicely, if all keys are relaxed. Otherwise, the keys push up the silicone mats.

    • The silicone mats have a guide rail on one side that fits into the black plastic and small grooves on the other side. The grooves are matched by nubs on the plastic part.

    • The silicone mats on the left AND the right ends are different from the others. One of them has the same size as the others, but has different groove positions.

Conclusão

To reassemble your device, follow these instructions in reverse order.
