Toshiba Satellite Radius P55W-B5220 Battery Replacement

Escrito Por: Devin Boski
  • Comentários: 0
Toshiba Satellite Radius P55W-B5220 Battery Replacement

Dificuldade

Easy

Passos

6

Tempo necessário

5 minutes

Introdução

The battery is the power source for your laptop. If defective, this guide will instruct you on how to remove and replace your battery.

  1. MxiAMPxtQWoOGkFc

    • Turn off the laptop before starting.

    • Remove the two rubber feet closest to the hinge with a plastic opening tool.

  2. XIhENa2HVGEXAcSu

    • Remove the twelve M2x4mm PH0 Philips head screws.

  3. VmAKNLjysEUCRNpe

    • Loosen the back cover with a plastic opening tool.

    • The least damaging way to pry the cover is to start from a corner and run the spudger along the edge.

    • Do not crack or bend the cover.

  4. i61PqQtkbSEHRSqR

    • Carefully lift open the cover.

    • Remove the attached purple ribbon cable underneath the cover.

    • Do not rip the ribbon cable.

  5. purmpvrnHYTKTjkN
    purmpvrnHYTKTjkN
    aQVZGGrloNERnwxa

    • Remove the four M2x2.5mm P0 Philips head screws.

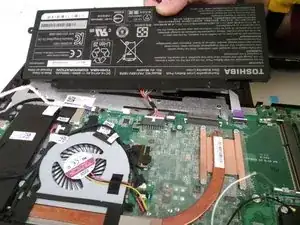

  6. RDtQM5YSBVWHTjyG
    RDtQM5YSBVWHTjyG
    WIUSFSkemQQiJa23

    • Pinch the attached cables and carefully pull away to remove the battery.

Conclusão

To reassemble your device, follow these instructions in reverse order.
