ThinkPad X1 Carbon Wireless Card Replacement

Escrito Por: Mike
  • Comentários: 1
ThinkPad X1 Carbon Wireless Card Replacement

Dificuldade

Moderate

Passos

5

Tempo necessário

45 minutes - 1 hour

Introdução

In this guide, you will learn how to open the ThinkPad X1 Carbon and replace the wireless card.

  1. xvYJFRNK15djBJMR

    • Using the #0 Phillips screwdriver, loosen the seven cover screws. they will not come all of the way out.

    Es ist keine WiFi Karte, sondern das LTE-Modem. Damit WWAN Karte. Die WiFi Karte wäre bei diesem Notebook angeblich verlötet.

    Georg -

  2. AINJbWHCthohwMkM

    • Using the spudger pop the cover loose and remove.

  3. rSTCgkcyiJGjNMmg

    • Use only plastic tools to disconnect battery cable

    • Slide battery connector in the direction if the arrow to disconnect.

    • You can leave the battery or remove it using the red circles for the screw locations.

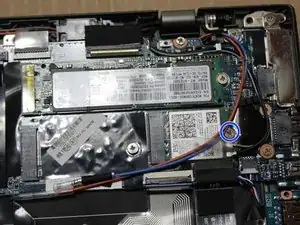

  4. wcuRvgi6cK2WtCC4

    • Remove screw holding the wireless card in place.

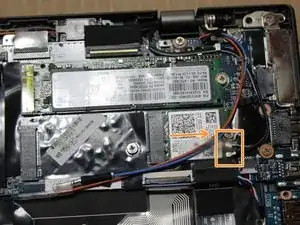

  5. AsHf4113dPkwBpBG

    • Carefully remove the antenna cables and slide out the card in the direction of the arrow.

    • The gray connector is on the top. The black connector is closer to the battery.

Conclusão

To reassemble your device, follow these instructions in reverse order.
