TI-30-XB Battery Replacement

Escrito Por: Jordan Dann
  • Comentários: 2
TI-30-XB Battery Replacement

Dificuldade

Easy

Passos

4

Tempo necessário

5 - 15 minutes

Introdução

Follow this guide to remove and replace the battery for the TI-30-XB

  1. efcd26xmaJ1mwPm2
    efcd26xmaJ1mwPm2
    wLnVVhq5V2QBRrOk

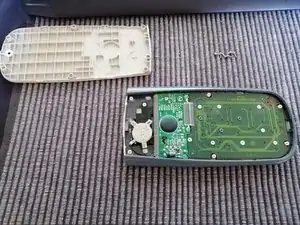

    • Remove the 6 screws on the back.

  2. 44eDYdTFZQAXEATY
    44eDYdTFZQAXEATY
    fS3PaDxSIT4kSHZs
    34jKNNXDNa4kV1Zw

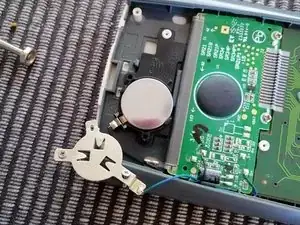

    • Remove the 2 screws holding the battery

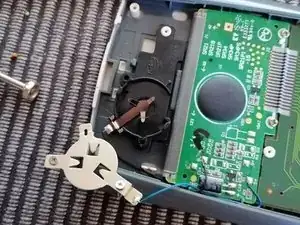

    • Eject the battery

  3. NhDgnxejyWZsMMGE
    NhDgnxejyWZsMMGE
    JhAOQAIbHdqZFNF5

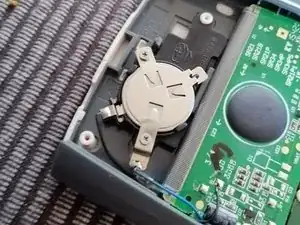

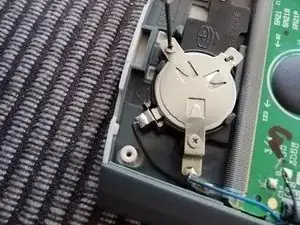

    • Make sure you put back in the correct battery! Check the old battery's type/ code and buy such one. Never buy a different type of battery.

    • Put the new battery in.

  4. GJhBElCiFKv2CKKC
    GJhBElCiFKv2CKKC
    5vDdxalrZUtpbFDF
    eApujg2JchRGdEwm

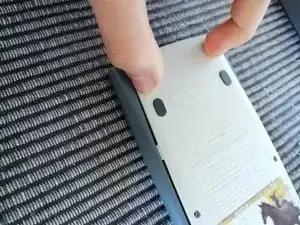

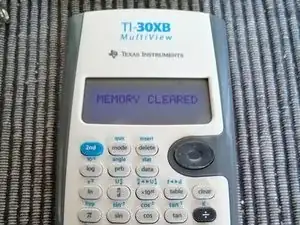

    • Replace the back plate and screw the 6 screws back in.

    Should the display not turn on, shortcut the reset pad (circuit board, lower part of the keyboard, brownish on green, shortcutting it with a non scratching screwdriver will suffice)

    Rob Kouwenberg -

Conclusão

To reassemble your device, follow these instructions in reverse order.

Autor(a)

Jordan Dann

Membro desde: 31/10/16

272 Reputação

Um comentário

if the calculator won't work after changing the battery, press the reset button.

Floris Van Lierde -
