Sonos Five Midwoofer Replacement

Escrito Por: Nicholas Ouimet
  • Comentários: 3
Sonos Five Midwoofer Replacement

Dificuldade

Moderate

Passos

6

Tempo necessário

No estimate

Introdução

  1. F2aNQQ1tPaqyolXZ
    F2aNQQ1tPaqyolXZ
    kQAZKEQcEELUEPoa
    sJAIVFtGW3yfZpQI

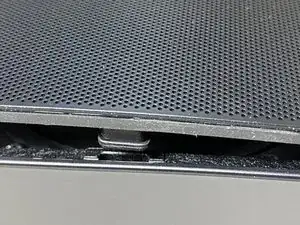

    • Use a thin guitar pick to carefully pry up the grille (photo one)

    • Ensure you position the pick to pry between the side of the case and the rubber grille frame; not the plastic mesh! (photos two and three)

  2. Bm6NiAYKmjuIjDXR
    Bm6NiAYKmjuIjDXR
    Gcel3MooNFO5PZip
    BDX2gJnk4iRAiLgA

    • Continue to work your way around the sides until the grille is freed.

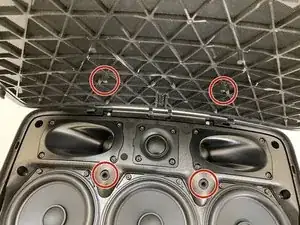

    • Make note of the red circled posts and their respective matching pins. They must be properly aligned when reinstalling the grille to prevent damage.

    May need additional guidance here on handling the sonos logo + pause play button in the center. I believe this is a single piece attached to both the case and grill and I was not sure how to remove.

    Michael Manes -

  3. gFnZWGV5HtXAqUeT
    gFnZWGV5HtXAqUeT
    D2mQfmEgBow2MDNs
    4cD5btmUx3RRoSD5

    • Remove the four red circled Torx T20 screws securing the driver to the front panel.

    • Be sure to align the speaker properly with it's alignment posts during reinstallation (third photo, red arrow)

  4. ZX2AVFX3PIJUU3eZ
    ZX2AVFX3PIJUU3eZ
    ltUPXeUN6HhYyKyY
    JKtIa1WsMVWSYYB1

    • The insulated terminal simply pulls off to disconnect.

    • The non insulated terminal has a locking tab (red arrow, second photo). This tab that must be depressed with a small screwdriver to unlock it for removal.

    • The midwoofer may now be carefully removed from the supporting frame.

  5. YnZ2ODNmBEofOsGN
    YnZ2ODNmBEofOsGN
    EGxoWP6RkAAfZJoS
    TesOUjFRJsR6n4Ig

    • Remove the four red circled Torx T20 screws securing the driver to the front panel.

    • Raise the midwoofer out of the cabinet slightly to enable you to disconnect the terminals.

    • The center midwoofer driver wires are extremely short. Be Careful not to place too much tension on the wires. This takes two hands one holding the driver while you disconnect the terminals with the other.

    • Again, the insulated terminal simply slides off, but the non insulated terminal's locking tab must be depressed.

  6. PDPfmFcuLILnEno5
    PDPfmFcuLILnEno5
    Sq443fXCqtXpvFxN
    TtqsKf2gW1kTKf4v

    • Remove the four T20 screws securing the driver to the front panel

    • Lift the driver out of the cabinet.

    • The left noninsulated terminal again has a locking tab that must be depressed. (red arrow, photo two) The right terminal is simply pulled off.

Conclusão

To reassemble your device, follow these instructions in reverse order.
