This guide demonstrates how to remove and replace damaged links on a Seiko 7s26-02T0 Watch. This technique may be used for other watches that have pin and collar links. Removing the damaged links prevents further damage to the watch and allows the watch to be properly secured on the wrist. Caution: When removing pins and small components, they may eject quickly. Work carefully and keep track of all parts.
Ferramentas
-
-
On the clasp, locate the four holes where the pin is currently held.
-
Using the pin pusher tool, push the pin inward to disconnect the links from the clasp.
-
-
-

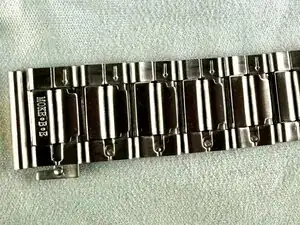

Locate the arrows on the inside of the watch link.
-
Find the small button on the bottom of the link.
-
Using a flathead tool, push the button in the direction indicated by the arrow on top of the strap.
-
-
-
Insert the flathead tool to push the link out.
-
Remove the "L" piece and carefully maneuver the link free.
-
-
-
Align the "L" piece with the assembled links.
-
Fully connect the end piece (the first one removed/closest to the clasp) with the remaining watch links.
-
