S7 MaxV Ultra Dock: Motherboard replacement

Escrito Por: DegenFixer
  • Comentários: 1
S7 MaxV Ultra Dock: Motherboard replacement

Dificuldade

Easy

Passos

5

Tempo necessário

15 - 30 minutes

Introdução

This guide will show you how to replace the motherboard of the dock unit of Roborock's robotic vacuum S7 MaxV Ultra.

I recommend reading the entire guide before starting the disassembly, then following steps as needed during.

  1. EiRgIYjJ6nNgAJeC
    EiRgIYjJ6nNgAJeC
    QQgiHdGRWMpZeDZr
    amDwMiEImBVfn43W

    • Remove the marked screws.

    • Pull the back cover off.

  2. KjZHiBAS2pWMdhle
    KjZHiBAS2pWMdhle
    xoOJlJ2bLfSRsX4N

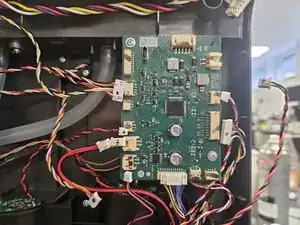

    • Disconnect the cables from the motherboard.

    • The motherboard is in the top right of the dock itself.

  3. C6loAuaJQweVBWdK
    C6loAuaJQweVBWdK
    YSJetfldUMZ2Mt24
    JNKlaWR2xLVFfR3g

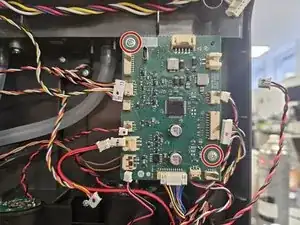

    • Remove the screws.

    • Once those are removed, take the motherboard out.

  4. NgEmlBejBhxxyWot
    NgEmlBejBhxxyWot
    2kiqriAaW4LUFPqc
    lpSOZQnsNoRB4sQS

    • When connecting the cables to a new motherboard, ensure all connectors are fully connected.

  5. 2jiSZBEDMBIOlxBV

    • Here are the screws organised by steps and size.

    • Use this if needed as a reference during reassembly.

Conclusão

To finish the reassembly, simply add the back cover and screw it back on.
