Revlon One-Step Hair Dryer Brush Disassembly

Escrito Por: Xochitl Sandoval

Comentários: 11

Revlon One-Step Hair Dryer Brush Disassembly

Dificuldade

Easy

Passos

Tempo necessário

No estimate

Introdução

Teardown of the Revlon Hair Dryer Brush.

Ferramentas

Phillips #00 Screwdriver

Passo 2

Remove the Two Phillips screws, one on each side.

Passo 3

Pull Hair Brush Portion

Do not pull apart the halves of the handle portion.

Xochitl Sandoval -

You must lightly pull apart the two halves just enough for the brush to pass

Alexis Hakes -

I removed the rings at the bottom before this step. That exposes the 2 screws at the bottom. Once they are removed then you can pry the 2 halves of the handle apart and the head comes off with no effort.

Scott Riddle -

Definitely remove the brush after removing the bottom two (2) screws.

Brad Fraley -

Passo 4

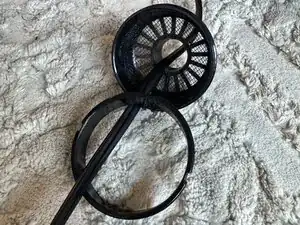

Twist and pull the Air Filter to remove the 2 rings. It is held in place by two lugs and holes (Circled blue on photo). Quite difficult to remove but it will come if enough force is applied
Slide the Power Indicator/Ring.

Show more on how to get the rings off. To get them off I used a flat screwdriver between the rings and the handle body to pry the rings down and off. I don't know if twisting would have gotten them to let go but that is what worked for me.

Scott Riddle -

I could not get the ring off with trying to twist by hand or prying. I then used a pipe strap wrench and had it off in 5 seconds with no damage.

Brad Fraley -

Nice, a photo would have been explanatory and inspiring.

Anton -
