Power Mac G4 Quicksilver Video Adapter Replacement

Escrito Por: Cameron Christensen
  • Comentários: 0
Power Mac G4 Quicksilver Video Adapter Replacement

Dificuldade

Easy

Passos

8

Tempo necessário

5 - 10 minutes

Introdução

This guide will show you how to remove and replace the Video Adapter in your Power Mac 4 Quicksilver.

  1. MI3MLXaxZt2N2WyU

    • The handle to open your computer is located on top of the right side panel.

  2. 2gTC6EkIwJDejnfC
    2gTC6EkIwJDejnfC
    2ucGgBJmyDkABGQ4

    • Grab the circular handle and pull outward.

  3. Nm4mRELLtcYI4YYI

    • Your computer is now open and ready for repair.

  4. VpVmYmvRU6vLIKgF

    • This is your Power Mac G4's video adapter.

  5. DxMGD1qFqmfFgbkI

    • Start by removing the screw holding the card to the chassis as shown.

  6. ZknYWMUrZSoo6lpL

    • Before lifting the card out, this small plastic tab needs to be pulled back there by releasing it entirely.

  7. E5EsGDQ4XaBT4U6U
    E5EsGDQ4XaBT4U6U
    yqkbuEVdxHyR1BQp

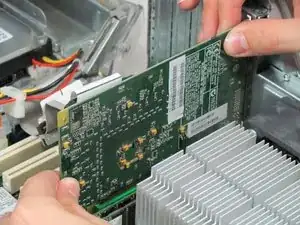

    • With the tab and screw removed, lift the card straight out.

    • When putting the card back in, take care to apply even pressure across the top with your thumbs. This will avoid damaging the card.

  8. fvFbR32VMrBp5gag

    • Your card is now completely removed and ready to be replaced.

Conclusão

To reassemble your device, follow these instructions in reverse order.
