Pioneer DVL-V888 Laserdisc Player Rubber Belt Replacement

Escrito Por: Seth Caron
  • Comentários: 0
Pioneer DVL-V888 Laserdisc Player Rubber Belt Replacement

Dificuldade

Moderate

Passos

14

Tempo necessário

15 - 30 minutes

Introdução

This demonstrates how to replace a rubber belt in a "Pioneer DVL-V888" LaserDisc player.

The LaserDisc player is a complex video playback machine that predates the DVD player with many complex functions using very large discs as its playback method. This particular model was released in 1998 with multiple other functions and playback formats including DVDs, LaserDiscs, CDs, and Video CDs.

One of the issues this device may develop is due to continuous usage and age, the rubber belt of the LaserDisc component may unwind due to wear and tear. Overall, this guide aims to assist users of this device in maintaining this device's usage.

Before you begin the repair, make sure the device is off and unplugged from the outlet or surge protector.

  1. lwxXbHgN4nOAUpdS

    • Unplug your LaserDisc player before you begin.

  2. wKoMMRupPoxXDCkh
    wKoMMRupPoxXDCkh
    6yuScFdukRUCTVPN
    qOOho6BfCUbOPMXF

    • Find each screw located on the player, there should be 2 screws on both the left and right side. There will also be 6 screws on the back.

    • Acquire your philips head screwdriver and carefully remove each screw carefully.

    • The 2 Screws on the left and right side are Black 5.1mm Philips #2 screws.

    • The 6 screws on the back are Brass 5.1mm Philips #2 screws.

  3. 4f1TiPLIXs34Kqx1
    4f1TiPLIXs34Kqx1
    bSxlVobEgewKv4hi
    os6vJTquQpXJWPIf

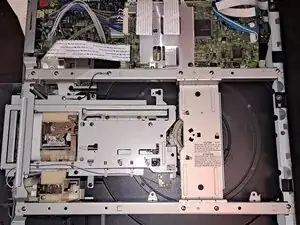

    • Once all of the screws are removed, slide the top off of the laserdisc player so that the whole frame is exposed.

  4. dAltUOr32AtYoegV
    dAltUOr32AtYoegV
    lRy3jMfVLSLsMZOP

    • Plug the device back in and click the power button to confirm that the conveyor belt for the disc player works.

    • If the disc tray slides out, continue to the next step.

  5. fvAgUZKCoSgvjUnY
    fvAgUZKCoSgvjUnY
    aYEXUspOgIMuDrMm

    • Unplug the power source again, this time while the disc tray is out.

    • This is very important as if the device is plugged in during later steps, the tray may automatically retreat back into the device which may damage either the player, you, or both.

  6. ftb2T6YULy1IO66d
    ftb2T6YULy1IO66d
    SHk3P5ZysZZKQAak
    PHZfUHjDBTLPDR4t

    • Loosen the two clips shown in the picture to release the lock holding the disc tray in place.

    • Slide the disc tray out of the laserdisc player horizontally ensuring no damage to the other parts.

  7. HOqi3EOl1iZuvxdW
    HOqi3EOl1iZuvxdW
    TiGNHjNt2V2thnEZ
    JFJU3B6RRgdOcGUq

    • Locate 3 gears and a wheel spinner within the laserdisc player and focus on the wheel.

    • Remove the rubber band from the wheel carefully (To the right of the gears).

  8. BYESqcRHy2xhMnIU
    BYESqcRHy2xhMnIU
    QhN1Y1GOvjFQKelm

    • Prepare the rubber belt for replacement as well as Q-tips and isopropyl alcohol for cleaning.

    • Cleaning is completely optional, however it will improve the longetivity of the new rubber belt you will be placing in the laserdisc player).

  9. Q5lXJmxSaJwAQF2M
    Q5lXJmxSaJwAQF2M
    tJPXJ1IniS6rJIUm
    qHOhpbrlhU4CTmP1

    • The following step is entirely optional.

    • Dip a Q-tip into the Isopropyl alcohol and use it to clean the gears and wheels.

  10. CwgnQDo46YvACM1m
    CwgnQDo46YvACM1m
    HNvejBRbEpqxxSRK

    • Wrap the rubber belt around the larger wheel and make sure it is stable.

  11. beGFAoOT26IT51vb
    beGFAoOT26IT51vb
    vTNBTha2ruiRPSql
    2dPV6d3icJ4ABfeC

    • Hold the disc tray in a stable position horizontally and ensure it that it is lined up with the tray slot.

    • For the next step, it is critical that the tray is lined up when we will slide it in as if the tray is misaligned, the tray may get stuck and can cause damage to the laserdisc player. It will also make the process of fixing it much longer.

  12. Z1242NRoJddqjuxs
    Z1242NRoJddqjuxs
    nYGloU6iMoR6HfcS
    GFsFOQFOXkEaDreI

    • Slide the disc tray back into the device ensuring it was aligned before placing inside.

  13. egMMcCHWmMONN3am
    egMMcCHWmMONN3am
    J2mERDrhejGQGOD1
    YuverZIIK2Zfb4HY

    • Plug the device back in and insert a laserdisc to test if the device is functioning.

  14. BGRKlAXpQLj4gGCo

    • If the device is functioning correctly, you may now reassemble the device placing the metal cover over the top.

    • Re-insert the screws and tighten them so that they are not loose.

    • The brass screws are to be reinserted into the back while the black screws are to be inserted into the sides

    • Enjoy your finished work, Well Done!

Conclusão

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
