Lenovo ThinkPad E15 Gen 2 Speakers Replacement

Escrito Por: Resnu Pham
  • Comentários: 0
Lenovo ThinkPad E15 Gen 2 Speakers Replacement

Dificuldade

Moderate

Passos

7

Tempo necessário

30 minutes

Introdução

Use this guide to replace the speakers on the Lenovo ThinkPad E15 Gen 2 (Models 20T8, 20T9, 20TD, 20TE).

  1. L2RJGMLwnHthYFoD
    L2RJGMLwnHthYFoD
    AFCnSZNEdfwfEoFx
    Uyu55PMWFRBxZmNV

    • Use a Phillips #1 screwdriver to loosen the eight captive screws securing the lower case.

    • The screws are captive and should not have the ability to be taken out.

  2. ScZODUnvNZaoeAA5
    ScZODUnvNZaoeAA5
    WU5mVDoYrs13LPXB
    dHNsRObZulxM4TBu

    • Insert an opening pick into the seam between the lower case and chassis.

    • Slide the pick around the entire perimeter until the lower case fully releases.

  3. tfnL32nBHONiTlt4

    • Remove the lower case.

    • When reassembling, place the lower case on top of all the clips and push down around the edges until all the clips are engaged.

  4. SwJTj4DJ4jeZlDIp
    SwJTj4DJ4jeZlDIp
    1tLJurSfkj1JJBc6

    • Pull the battery connector directly out of its socket.

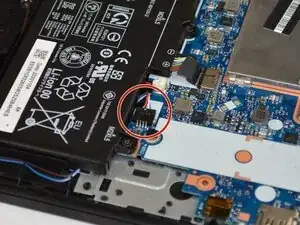

  5. QBxGuDGPTmLBrMQI
    QBxGuDGPTmLBrMQI
    soKyyeFJuaZ3maYT
    yvkTpROINl6QLTJO

    • Locate the speaker connector.

    • Disconnect the speaker connecter.

  6. CRtQqspGjJIOhgow
    CRtQqspGjJIOhgow
    cISfZ6tJje1BTGip
    ONRQgLKZRKDTH4qB

    • Lift the speakers out.

  7. 2LjorwpkjoqKmt6i

    • Remove the speaker module.

Conclusão

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
