Lenovo IdeaPad FLEX 4-1580 Fan Replacement

Escrito Por: Matthew Hurtt
  • Comentários: 1
Lenovo IdeaPad FLEX 4-1580 Fan Replacement

Dificuldade

Easy

Passos

8

Tempo necessário

20 minutes

Introdução

If the laptop begins to freeze up then it is a problem with the fan.

  1. YmVHWW43ThMlMDfO

    • Flip laptop over so the model sticker is showing, and begin to unscrew all of the screws.

  2. 62oHKfMAsaNIAQAM

    • Pop off the back panel using a plastic opening tool once all screws are removed.

  3. I5MwOfBHsSgEc2GD

    • Once the panel is fully removed, begin to unscrew the battery.

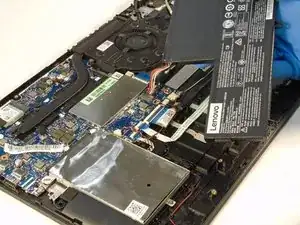

  4. cN11M6viFYtIAB5P
    cN11M6viFYtIAB5P
    sojHkXMpOJDSTIqr

    • Use the iFixit Opening tool to disconnect the battery from the circuit board.

    • When all screws are removed from the battery, carefully lift the battery up.

  5. RSTA2D6V6s3AwbJH

    • The battery is completely removed, and can be replaced with a new battery.

  6. Uj3o1kCtSYCIB5Qf

    • Remove all screws securing the fan to the laptop.

  7. vjjMJMYQtccxkyUb

    • Unhook the wire from the fan component using a spudger.

  8. GnBORBUgCupOkrAd

    • Now the fan is completely removed.

    Hello, help me what fan it is I need to buy it for my laptop but I don't know what model it is

    En las Nubes 1 -

Conclusão

To reassemble your device, follow these instructions in reverse order.
