Lenovo IdeaPad 3 14IML05 RAM Replacement

Escrito Por: Trenton
  • Comentários: 0
Lenovo IdeaPad 3 14IML05 RAM Replacement

Dificuldade

Moderate

Passos

3

Tempo necessário

15 - 25 minutes

Introdução

This guide explains how to replace or upgrade the RAM module in a Lenovo IdeaPad 3 (14IML05). Replacing the RAM can improve system performance, responsiveness, and multitasking capability.

Before beginning the repair, power off the laptop completely and disconnect the charger.

Component Damage: Do not force open plastic clips; they may break.

  1. ylWnabqbmcnJudfy

    • Power off the laptop completely before beginning the replacement.

    • Use a Phillips screwdriver to loosen the ten captive screws securing the bottom cover.

    • Captive screws shouldn't be removed.

    • Insert a plastic opening tool into the seam between the bottom and top cover and slide it around the perimeter to release the clips holding them together.

    • You may hear a clicking or cracking when releasing the clips.

    • Remove back panel.

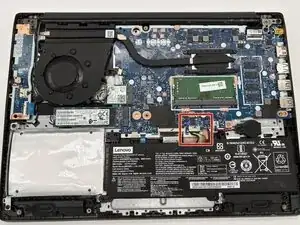

  2. RbWWDuSdmQDAZXAB

    • Use the point of a spudger to push on alternating sides of the battery connector to "walk" it out of its socket on the motherboard.

    • It may take a lot of alternating before the connector comes out. Be patient, and don't pull on the cables.

  3. EcgUfcwhYBUJuuki
    EcgUfcwhYBUJuuki
    MARYr2h3kSZijeZE

    • Push the metal retaining clips away from the RAM chip.

    • The RAM chip will pop up at an angle.

    • Hold the RAM module by its edges and pull it straight out of the slot.

    • When installing the new RAM module, align the notch on the new SODIMM with the key in the slot. Insert the RAM at a slight angle. Press the module down until the clips lock into place.

Conclusão

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
