Lefant M210 Battery Replacement

Escrito Por: Darien Amador
  • Comentários: 7
Lefant M210 Battery Replacement

Dificuldade

Moderate

Passos

17

Tempo necessário

30 minutes - 1 hour

Introdução

Robotic vacuum batteries generally last 2-3 years, depending on usage. Over time, you may notice that the battery holds less charge, requires more frequent recharging, or a decrease in cleaning performance. Use this guide to help replace your battery and restore your Lefant M210 robot vacuum to like-new performance.

Before you begin this repair, turn off the vacuum.

  1. hxtPpCmZYRXByvvA
    hxtPpCmZYRXByvvA
    TkSTDccBkxp2SXve

    • Turn off the Lefant M210 and disconnect it from the charging dock.

    • Flip the unit over so the bottom faces upward.

    • Locate the circular brush assemblies on the left and right sides of the underside.

    • Place the unit on a clean, flat surface to prevent scratching.

  2. vlQceXhE1r1kMM5a
    vlQceXhE1r1kMM5a
    EpBeJrcoPnFBFdaW
    aWQxLHpaquDDGkkT

    • Insert the iFixit Opening Tool (or similar pry tool) under the circular edge of the brush assembly.

    • Apply gentle downward pressure on the opposite end of the tool to lever the brush component out of its housing.

    • Remove the brush assembly completely and set it aside.

    • If replacing both brush assemblies, repeat this process on the other side.

    • Avoid using excessive force, which may damage the mounting clips.

    • Position the new brush assembly above the square mounting peg.

    • Align the square cavity on the bottom of the brush with the corresponding square peg in the vacuum housing.

    • Press down firmly on the brush assembly until you hear or feel it click into place.

    • Gently tug on the brush to verify it is securely seated.

    • The brush should sit flush with the housing and not move when pulled gently.

  4. Zqk6gIHxJmdwCqpW

    • Use a Phillips screwdriver to remove four screws near each wheel.

  5. 15pWyj44ycVQtDyB
    15pWyj44ycVQtDyB
    sYBEsOhQWCBRXKZ5

    • Remove the plastic cover next to each wheel.

    • Grip both sides of the wheel and pull upwards.

    • The wheels of the device require some force to remove.

    • Don't pull the wheels too hard as they are attached to cables and may be damaged if yanked.

  6. BMWeYMhJZwUWDeMA
    BMWeYMhJZwUWDeMA
    mE5NGmcVusnICMlZ
    FjYfHF1xX3mP2xC6

    • Hold the wheel up and detach the connector to release it from the device.

  7. ImBkUWFIEY15OAIH

    • Open the dustbin compartment.

  8. ZRyOYW2jhldUCpVw
    ZRyOYW2jhldUCpVw
    bwJ6KwP35aTLjJYg

    • With your hands, gently pull the dustbin to remove it from its compartment.

  9. qebqO5l13mTZVylc

    • With your hands, pull off the filter compartment from the dustbin.

  10. PYuVoTZaqkqICegD

    • Pull off the filter from the filter compartment.

  11. ZZsdsaLDHZkPEbOm

    • Use a Phillips #1 screwdriver to remove the six screws around the bottom edge of the device.

  12. 1u66IQtRrBDIqIgR
    1u66IQtRrBDIqIgR
    yXblhqapslZjM2PH

    • Carefully flip the vacuum back right-side-up, making sure you're holding it all together so that the bottom portion doesn't fall out.

    • Rotate the vacuum so that the Lefant logo is facing you.

    • Carefully lift the white cover of the vacuum, opening it like a laptop, from front to back.

    • Rest the open cover something stable, like a wall.

  13. 1B5KuIXHMCdOAUxJ
    1B5KuIXHMCdOAUxJ
    dsLxogALyXySBKMq

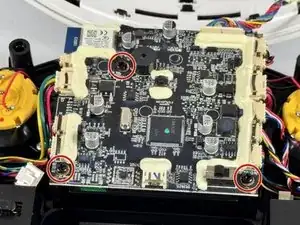

    • Use a Phillips #1 screwdriver to remove the three screws securing the motherboard to the device.

  14. Br6epXWXetcRZD5l

    • Carefully lift the motherboard, ensuring you don't rip any cables that are connected to it.

    • The battery should be under the motherboard.

    some steps missing

    Toy Meyer -

  15. aSfSlRqYHKOEIN1p
    aSfSlRqYHKOEIN1p
    AuCLOVCfM14bPBGZ

    • Push the two retaining clips away from the battery while pulling the battery up from the tabs attached to it to free it.

    • Retaining clips

    • Battery tabs

    • Work on freeing one side at a time so that it's easier to free the battery.

  16. P2axWn26vpMnvOgo

    • When the battery is free from it's housing, lift it out completely using its pull tabs.

  17. dvj1Y5IiAXARd1my
    dvj1Y5IiAXARd1my
    RYOqosqwvJuOGtFZ

    • Locate the battery connection wire and carefully pull apart the connection.

    • Pinch the motherboard's wire connector and pull the connection apart.

    • The connection is secured by a clothespin-like mechanism.

    • When you replace your battery with a new one, allow the robot vacuum to fully charge for a few hours before using it again.

    اين اجد البطارية في العراق وبسعر مناسب

    Justin Jameel -

    اين توجد البطارية في العراق وبسعر مناسب

    Justin Jameel -

Conclusão

To reassemble your device, follow these instructions in reverse order.
