JBL Tune 600btnc Battery Replacement

Escrito Por: Nick Farfaglia
  • Comentários: 3
JBL Tune 600btnc Battery Replacement

Dificuldade

Easy

Passos

3

Tempo necessário

10 - 15 minutes

Introdução

  1. GHBA1yiDGanYqTSA

    • This can be done by prying at the base of the ear cup and moving around in a circle.

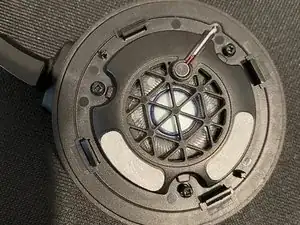

  2. K1tqoMjQUDrHxWVG
    K1tqoMjQUDrHxWVG
    WtbhRH6WHcaMEJfu

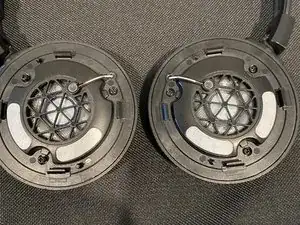

    1sM6WnRlUB5CbukF

    • once the screws are loosened. Pry at the base of the driver to release the plastic tabs.

    • Loosen the three screws. Note the position of the wire feeding the driver.

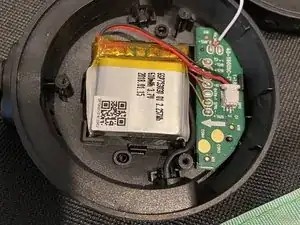

  3. SP3ETFJgtpAghaKw
    SP3ETFJgtpAghaKw
    Rm4NlONyLgXGGCtX
    tDqSkafp1vWiwXlC

    • There is a small amount of adhesive on the backside of the battery.

    What size is connector sh 1.0mm or micro jst 1.25mm?

    John Smith -

Conclusão

To reassemble your device, follow these instructions in reverse order.
