Honeywell Turbo Force Air Circulator Fan Disassembly

Escrito Por: Donovan Williams

Comentários: 9

Honeywell Turbo Force Air Circulator Fan Disassembly

Dificuldade

Moderate

Passos

Tempo necessário

No estimate

Introdução

This guide will show you how to disassemble a Honeywell Turbo Force Air Circulator Fan, so cleaning the interior of the fan is easier. It will also allow for further actions to take place such as oiling the rotor of the fan.

Ferramentas

Passo 1

Honeywell Turbo Force 12" Air Circulator.
Dimensions - 11.22" x 9.8" x 13.98", 5.7 lbs.

Passo 2

Remove the 6 screws from the backside of the fan.
You will want a Phillips screwdriver with a fairly long, thin shaft for this step, especially for the screw up top above the fan speed knob. The screws are recessed several inches into the body of the fan.

Passo 3

Remove the front grill cover.

This is a lot harder than it looks at first. I believe that some models may have a metal ring, and that can make the removal 10 times harder. The only way I was able to remove the ring was to take a small screwdriver and bend one of the flaps up until the ring had enough room to be pried out.

Noah -

I had a metal ring in mine and yes it was a pain to get off and to get back on. I appended a tip to the plastic ring step on how I got it back on.

ToothlessTTV -

Passo 4

Remove the inside plastic ring around center shaft.
Enables the fan blades to be removed.
Use a flat head screwdriver to remove the plastic ring.
During reassembly, you will likely need to apply pressure on two opposite sides of the ring in order for it to re-mount to the post properly. Ensure that the raised convex side is facing towards you.

I am having issue with reassembling the leg back onto the fan due to the pivot attachment. Can u help

Teri B. -

Passo 5

Remove the fan blades by pulling.

Passo 6

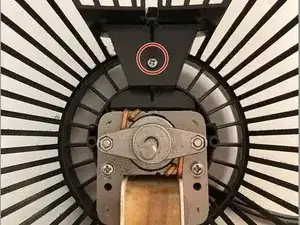

Remove 1 screw inside to detach the plastic wire covering.

Passo 7

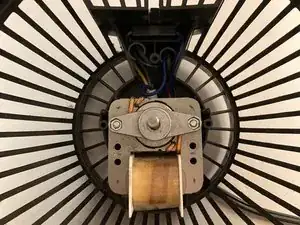

Remove the plastic covering.

Passo 8

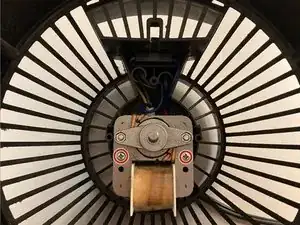

Remove the 2 screws on the motor.
This allows the motor to pull away from the housing.

Passo 9

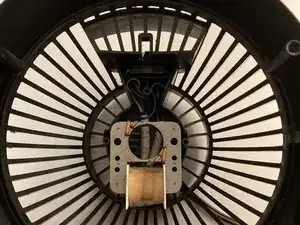

Pull the motor away from the housing to expose wiring.
Use caution to not detach the wiring from the back.

Passo 10

Remove the two screws from the back of the motor.
Allows the rotor and front/back bearings to be removed.

Passo 11

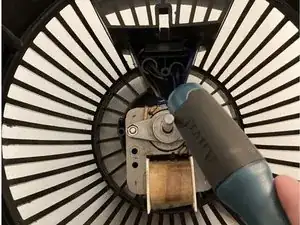

Remove the rotor and front bearings by pulling.

Passo 12

During reassembly, re-align the bearings by tapping on the shaft.

Conclusão

To reassemble the fan, follow these instructions in reverse order. Note that Step 12 is an extra step in the reassembly process to follow.
