GreenWork 10A 16" Lawn Mower Starter Lever Replacement

Escrito Por: Kabir singh
  • Comentários: 1
GreenWork 10A 16" Lawn Mower Starter Lever Replacement

Dificuldade

Easy

Passos

7

Tempo necessário

15 - 25 minutes

Introdução

Use this guide to replace the Greenwok 10A 16” Lawn Mower Starter Lever. To start the motor, this lawnmower requires a strong starter lever. However, the starter levers are easily broken because they are hollow and fragile; they may also be old and difficult to use. Replacing your starter lever will make it easier to use your lawnmower.

This guide provides step-by-step instructions to replace the starter lever of your lawnmower. Use caution when disassembling and reassembling your lawnmower, as some parts may be difficult to handle.

  1. lbRBj1Jsd44VBkHE
    lbRBj1Jsd44VBkHE
    FfW4hn6bOIAjP43x

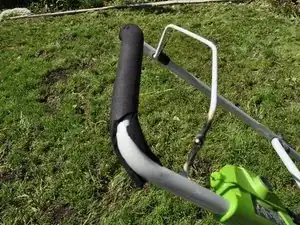

    • As seen in the picture, the lever is snapped on one side and needs to be replaced.

  2. AmelxAwEsAoPsIVS
    AmelxAwEsAoPsIVS
    hhSAlGVANuT6L4JY
    G2HKJTbTufpD2c1f

    • Lift the wire to line up the hook.

    • When the hook is lined, pull the wire from the lever.

    • The wire may get stuck, but to avoid damage, do not pull the wire with resistance.

    • Move the wire away from the lever.

    • Ensure that the hook is still attached to the wire.

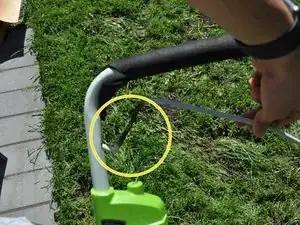

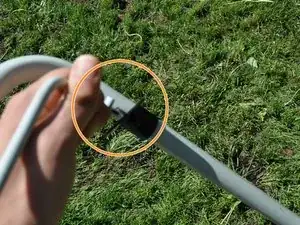

  3. HREKwTlnXSxCbjES
    HREKwTlnXSxCbjES
    wnVadIEh3VIKZVZR
    UUdGtAvDxIDoEtVJ

    • Pull the broken lever.

    • Start with the right side, as the left is hooked in.

    • Pull the lever from the drill.

    • Tilt the lever down before removing the left side.

    • When the lever is tilted down, you can pull the lever out of the drill.

    • The lever may get stuck on the left side, but ensure to fully tilt the lever down.

    • If the lever is snapped, remove it one side at a time with an adjustable wrench.

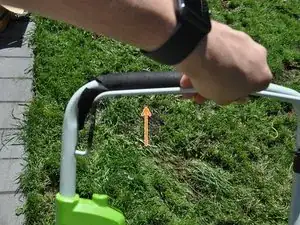

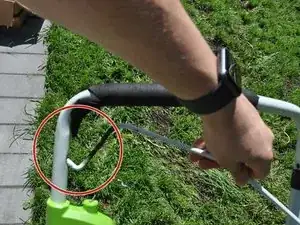

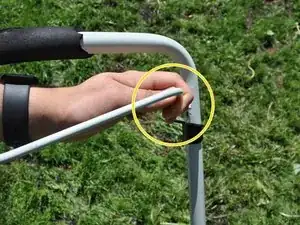

  4. gyVOgAcxBVWdjRvM
    gyVOgAcxBVWdjRvM
    NFTBwQYP4InSN2Ka
    1i4ePYArXZo5dHYP

    • Insert the new lever starting with the left side while it is tilted downwards.

    • Once the lever is in, move to the next step.

    • Tilt the lever up so that the lever on the left is fully inserted.

    • Squeeze the right side of the lever to insert it.

    • Put the right side of the lever into the drill in the mowers handle.

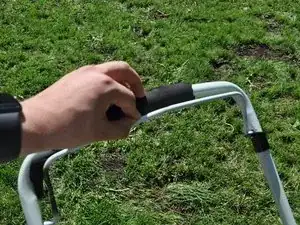

  5. dQ5YGtkgKDFPP53w
    dQ5YGtkgKDFPP53w
    UTNXqOWJJkj2dCYT
    hDZxwrTIK1iQcdaf

    • Ensure that the lever moves back with ease.

    • Move the lever up and down. If it gets stuck or has resistance, it might not fully be in place.

    • If the lever is not fully in place, repeat steps 3 through 5 to fix it.

  6. eFrfEjkZXGpNJOhm
    eFrfEjkZXGpNJOhm
    3lQZpQKFyuDvQRgV
    BMT5UYTIKeAMtCWo

    • Insert the new wire.

    • This wire should be put in sideways (wire raised up).

    • Put the hook fully through the hole.

    • Then tilt the wire down to ensure that it is in place.

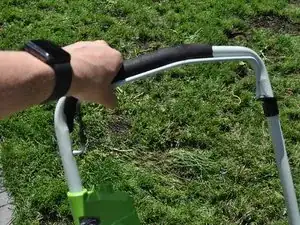

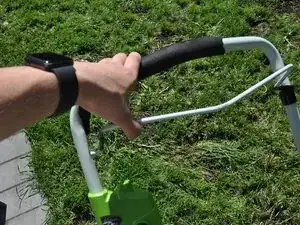

  7. YeXVCimtaHNyIqjb
    YeXVCimtaHNyIqjb
    CR3M5sfr1LAKNI1n

    • Now the lever should move with the wire still in the drill when pulled back.

    • The wire should be pulled all the way back with the lever.

Conclusão

Now that the lever is replaced, be careful when you pull the lever back and place the mower down. This will avoid future issues and another replacement.
