General Pipe Cleaners Drain Cleaner PMEBO 2016 Power Cable Replacement

Escrito Por: Adam O'Camb
  • Comentários: 1
General Pipe Cleaners Drain Cleaner PMEBO 2016 Power Cable Replacement

Dificuldade

Moderate

Passos

13

Tempo necessário

15 - 40 minutes

Introdução

Use this guide to replace the power cable in a General Pipe Cleaners Drain Cleaner PMEBO 2016.

  1. SKAPK61UEcnXWWnk

    • Before you begin, make sure the drain cleaner is disconnected from power.

    • Use a Phillips #2 driver to remove the two screws securing the control box cover.

  2. ZGRopeTVnyWlIyJB

    • Remove the control box cover.

  3. YdUjPbvtExssNDSh

    • Use a 9/16 inch deep socket and ratchet to remove the nut securing the reverse switch.

  4. aHMMQw3RtVWLvRJL

    • Remove the reverse switch guard.

  5. fpXDYVVXpSCr6vJs
    fpXDYVVXpSCr6vJs
    jZ1FwaYGFfJEcyFF

    • Squeeze the tabs on either side of the reverse switch connector.

    • Pull the two halves of the connector apart to disconnect it.

    • Take note of where everything is connected in the control box before disconnecting anything else.

  6. CDQYDDwCVG5xhSuV
    CDQYDDwCVG5xhSuV
    blvH6qkmyRHXBSCT

    • Pull the white cable straight off of its spade connector on the power switch diaphragm.

  7. mh5QARJvw3jNvJYk
    mh5QARJvw3jNvJYk
    lreTPWuGCYCOPvCy

    • Pull the black cable straight off of its spade connector on the power switch diaphragm.

  8. YomLE4RggWy4SwIV
    YomLE4RggWy4SwIV
    6jgNgbIe1pxku5eA
    fa3PaP2CBIOrCs5U

    • Slide the switch assembly down out of its hole in the control box and pull it out of the control box.

    • Be careful not to snag the switch on any cables during removal.

  9. pAKw6gIXfCoxMPUV
    pAKw6gIXfCoxMPUV
    O1lTFEYqeHZcFnBb
    h6GHMTcRdm1MWrZp

    • Push in on the small tab on the side of the plastic power cable clip.

    • While holding the tab down, pull straight down on the power cable.

    • Do not remove the cable yet, it is still connected to the drain cleaner. Slide it down just enough to move the clip out of the control box.

  10. fHdlfMh3tiIRo1MF

    • Use a Phillips #2 screwdriver to loosen the two screws securing the power box cover.

    • With the screws loose, slide the bottom of the cover to the right enough so the whole cover can swing down and away from the box opening.

  11. sZgLygCGiZusII6j

    • Use a flathead screwdriver to remove the green screw securing the green power cable wire.

  12. 3xH5uTCpeTnNnaxl

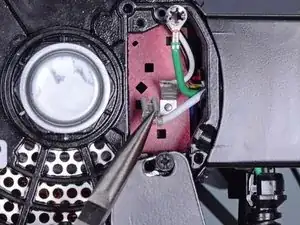

    • Use pliers to pull the white power cable straight off of its spade connector.

  13. RWO3ZTsWYkYgikFC
    RWO3ZTsWYkYgikFC
    RNiVdbZ4TJO5OnlV

    • Feed the green power cable wire through the control box first, then carefully pull down on the entire power cable and remove it.

    • Make sure you don't snag the power cable on any wires or on the control box during removal.

    • During reassembly, feed the white wire through the control box and into the power box first, then the green wire.
