GRAVITTI 16" 3 SPEED OSCILLATING STAND FAN Repair

Escrito Por: TUOYO FABIYI
  • Comentários: 0
GRAVITTI 16" 3 SPEED OSCILLATING STAND FAN Repair

Dificuldade

Easy

Passos

10

Tempo necessário

30 minutes

Introdução

Many people can find it difficult to fix a broken fan even though, most of the time, it's quite easy. No particular skills are required, many of the processes are simple, and you only need to know how to use a screwdriver. There is minimal risk; it is advised to unplug the fan from any outlet because that is the only possible danger.

This manual is crucial since it deconstructs and makes repair of any damaged fan simple. The main goal of this article is to make it clearer how to fix a broken GRAVITTI 16" 3 SPEED OSCILLATING STAND FAN.

  1. bH1dBSv6ygGXquA3
    bH1dBSv6ygGXquA3
    rYGHwSklQsyTN3Xs

    • Take out the front metal grill.

    • Flick open the metal piece, located by the side of the cover, to get the front and back of the grille unlocked from each other.

  2. vUAxOkOaD2SYbfg2
    vUAxOkOaD2SYbfg2
    beaoJnDviRDQwWR1

    • Turn the knob counterclockwise to take out the blade cap.

  3. XoGggcuRKXPAumb5
    XoGggcuRKXPAumb5
    PMZjKVOhMcC4T2GF

    • Loosen the plastic nut on the rear grille and then take the rear grille out.

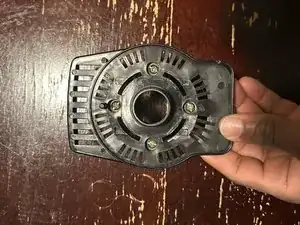

  4. MWFbRjSlxMCSaKMV
    MWFbRjSlxMCSaKMV
    5HwguBpsHaelWYaI

    • Unscrew the plastic on the fan motor, and gently pull the slide open: There are four screws, proceed to taking off the plastic plates.

  5. 6MX5HiCUl6SxFQVP
    6MX5HiCUl6SxFQVP
    vhciILrfJsfAnuR4

    • Apply machine oil onto any rusted parts, making sure you apply it around, but not in, the fan rotor.

    • Let the oil sit for about 5 minutes

    • Do not spill the oil on the surface or into the rotor.

  6. DctLe4x2IsyCKPwi
    DctLe4x2IsyCKPwi
    1FWqiJctlTdx1Um5

    • Carefully place the plastic plate properly on the surface of the fan rotor.

    • Make sure the screws align with the holes on the fan motor, then proceed to screw.

  7. LHNxlU4RJQ1bMi1y

    • Place the fan rear grille back into its original position and pick up the plastic grill nut.

    • Screw the rear grille onto the fan motor.

  8. VwQ2EIwVbVt3qQcB

    • Place the blade back onto the motor pin, making sure it sits on the edges of the fan.

  9. D1bDrPcyHsKdL6gJ

    • Take the circlip and tighten it well onto the blade.

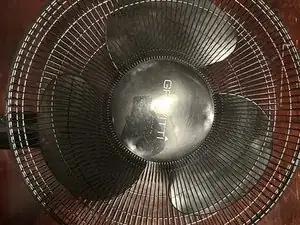

  10. bKGsndNEeP5Zy12x

    • Pick up the front grille and align it with the metal piece around the fan.

    • Lock the metal piece, so that both the front and rear grilles are locked.

    • If the metal pieces do not align, you will have issues locking the grilles to each other.

Conclusão

To reassemble your device, follow these instructions in reverse order.
