This is an easy guide to replace the battery of an Eve Flare with a new 103450 LiPo battery.
Be careful which battery plug you purchase. JST-PH 2.0mm is too small. Be careful which battery plug you purchase.
Peças
-
-

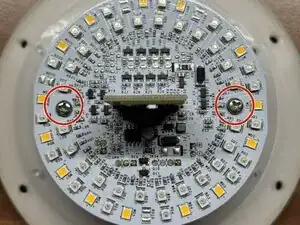

Inside the buld you finde a PCB which is attached to the base with two screws. They are shorter ones. Unscrew them.
-
-
-
Under the PCB is the pocket where the battery is inserted.
-
Remove the two screws, and use something small to remove the cable of the battery from the top PCB.
-
There is an unplugged plug. It's the charging indicator, which was unplugged from the manufacturer's side. You don't need to plug it in, when you reassemble the light bulb.
-
After that you can easily remove the battery, and insert the new one.
-
You could unsolder the cable from the old battery and solder it back on the new battery if your plug (blue marker) is wrong. Be careful; you are working with heat on a battery!
-
Specifications of the new battery: 103450; 3,7V; 1800mAh
-
To reassemble your device, follow these instructions in reverse order. Don't forget the battery housing.
