Dell Latitude 3310 RAM Replacement

Escrito Por: BrandonWilliams
  • Comentários: 0
Dell Latitude 3310 RAM Replacement

Dificuldade

Easy

Passos

5

Tempo necessário

10 - 30 minutes

Introdução

The purpose of this guide is to inform the reader on how to properly remove the RAM from their Dell Latitude 3310.

  1. xdDWyC2XSafQKioX

    • Remove seven 8.0 mm screws using a Phillips #1 screwdriver.

    • Remove three 5.0 mm screws using a Phillips #1 screwdriver.

  2. DrsP51hDJ3IUuOcg

    • Using the iFixit opening tool, gently pry between the body of the laptop and the bottom cover. Make your way around the laptop carefully releasing all plastic clips.

    • The screen hinges are an ideal spot to begin prying.

  3. MxsujsUdregP3rl4

    • Remove the bottom cover.

  4. NDolMXBMKCLwmlvC
    NDolMXBMKCLwmlvC
    JEfpwdRTbZQkwCgF

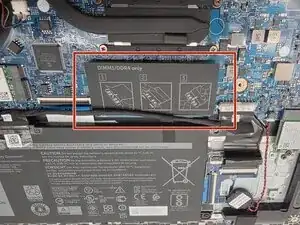

    • Lift the plastic cover up to expose the memory chipset.

    • Carefully pull the clips away from the chip to disengage them.

  5. cQoltM3KACrInqAb
    cQoltM3KACrInqAb
    EP1dTmvjPjpJF1tV

    • After the clips are moved, the RAM will lift up on its own.

    • Remove the RAM.

Conclusão

To reassemble your device, follow these instructions in reverse order.
