Replacing the motherboard in your Dell Inspiron E1705 is one of the more involved laptop repairs you can tackle at home, but with the right tools and patience, it's entirely doable. There is no soldering or advanced technical skills required.

You might need this repair if your laptop won't power on at all, fails the startup self-check, suffers from no video output, has dead or unresponsive USB and audio ports, or experiences persistent overheating and random shutdowns . A failed motherboard is often the issue when multiple systems fail at once or when other repairs haven't solved the problem.

Successfully replacing the motherboard should resolve any of the issues above, if they stem from the board itself and not a separate failed component like RAM or a GPU.

One thing worth knowing going in: the E1705 is a larger, older machine, which actually works in your favor. Compared to modern notebooks, there's more physical room to work, and the screws and connectors are a little easier to work with. The board is deeply integrated into the chassis, so the repair does involve removing nearly every other major component first before you can access the board itself. Take your time, keep your screws organized, and follow each step carefully, and you'll have your laptop back up and running.

  1. TOdTjpkb45FovFEF
    • Make sure that the computer is turned off and is disconnected from external power source.

    • Turn it upside down and locate the battery release switch.

    Introduction: Parts: Need to add the Fan Part Numbers

    Original equipment: CPU Fan DC28A000820, GPU Fan DC28A000920

    John Frazier -

  2. JGpfhAlcMRt6PDQf
    JGpfhAlcMRt6PDQf
    YsDcehP3sPdKYgYH
    • While holding the switch in the open position, lift out the battery.

    • If you plan to work on any internal laptop components, press and hold the power button for 5 seconds. This will dissipate any residual charge on the motherboard to prevent electrical shock when you begin to handle it.

  3. NJpSZSvcGU45IRZb
    NJpSZSvcGU45IRZb
    UYxYlbsncEHJ2gDd
    • Remove the two Phillips #1 screws on the left side of the computer, just above the battery compartment.

    • These screws hold the hard drive tray into the hard drive compartment.

  4. ulGXLQWcPXbMBFib
    • Slide the hard drive tray out of the hard drive compartment.

  5. JhXifRDdpCgNGg2J
    • Locate and remove the screw shown

    • It is labeled with a lock symbol

  6. eSSwoBcX2muLNIsT
    eSSwoBcX2muLNIsT
    U6VHW3hoDJVxXMgJ
    • Use the screwdriver to gently push the optical drive out

  7. fDBHHPQEcNyEvmXB
    • Remove the 12 Phillips #1 screws from the edges of the lower case.

    • You may also need to remove the central screw next to the lock icon.

    Need to add a step to open the Wi-Fi cover, uper left with the Microsoft label on it. Then detach the Wi-Fi antenna wires from the pc board.

    John Frazier -

  8. SMmwKYXCCEbn2u3B
    SMmwKYXCCEbn2u3B
    FhpIrM5qVJT2LdFv
    TWRoE2plx6XHWYXC
    • Turn the computer back over and tilt the screen open.

    • Use the plastic opening tool to carefully pry the panel out as shown in the pictures

    • Remove the plastic panel carefully.

  9. kyLWuF1iHaY16dCg
    kyLWuF1iHaY16dCg
    XAmU6xmdiQtfaCN6
    pEt1XB1CjDoCPLNN
    • Use the small Phillips head screwdriver to remove the screws circled in red.

    • Gently lift the keyboard up and rest it just below the screen as shown in the picture.

    • The keyboard will still be connected to the motherboard.

  10. TfLJq4FKltJynHsn
    TfLJq4FKltJynHsn
    cXtpsRPrkbKwJH1o
    • Before removing the keyboard completely, use the plastic opening tool to gently lift the clamp connecting the keyboard to the motherboard.

    • Once the keyboard has been disconnected, remove the keyboard completely.

  11. b2Z3yLYHWRAAN34U
    b2Z3yLYHWRAAN34U
    wtHlvIWFcGaHZmvM
    ghMJ2stLInZOcttE
    • Using a Phillips head screwdriver, remove the screws shown in the image. They all have the letter "P" next to them.

    • Carefully unplug the connections shown.

    • Don't forget the display cable. It is slightly to the right of the Dell logo at the top.

    • Also, the wireless cables on the right side may prevent moving the upper case out of the way.

    • Once the screws have been removed and the connections unplugged, use the plastic opening tool to gently separate the panel from the lower case.

    It probably better to leave the small blue battery to the left plugged in for the Bios Chip. Just lift the batter out of its holder and move it out of the way as the cover is moved. If unplugged the computed will ask you to run setup when you start the computer.

    John Frazier -

  12. E6RoSrylCslBTJDZ
    • Remove the plastic case by gently bending back towards the screen. You can bend the screen all the way back if that helps.

    • For the motherboard the optical drive will be removed already. However for the lower case it is not necessary that it be taken out.

    • If you are having trouble removing the upper plastic case (and LCD) from the lower case, there may still be a wire connected to the Wi-Fi adapter. Turn the laptop over, open the Wi-Fi module access panel and remove the + and - leads for the Wi-Fi antenna.

    Need to add a caution when rotating the cover to be careful with the hinge post on the right side. you can snag the GPU heat pipe as you rotate the cover. So watch the maneuver.

    John Frazier -

  13. GqPxahAMdRWY5Mp6

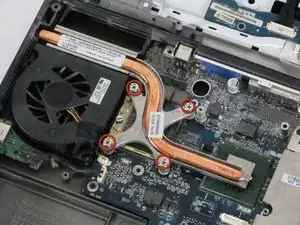

    • Unscrew the 4 screws shown in the picture.

    • Screws will not come out all the way.

  14. uDKE3UMG4lkODNN1
    uDKE3UMG4lkODNN1
    Uw3mGCq2v6bshHVw

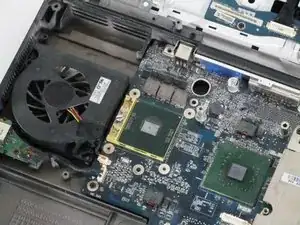

    • Remove the heat sync gently

  15. AHCyqZU4QwlAGaBV
    AHCyqZU4QwlAGaBV
    g5BAEcoVo22Qm5cJ
    1yHlkAdUJKw1fYLg

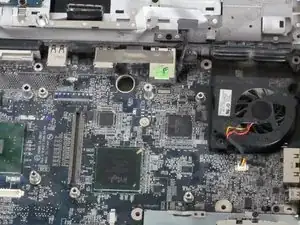

    • The right heat sync is connected to the videocard. To remove the heat sync requires also removing the videocard.

    • Remove the 4 screws indicated in the first picture

    • Screws will not totally come out.

    • Gently lift up the videocard and heat sync from the motherboard.

    Note: There are two different types of motherboards for the E1705/9300/9400. One with discreet graphics (DF047) and one with integrated graphics (FF055). You can tell which if the system has 1 or 2 cooling fans. Systems with discreet graphics will have a second cooling fan in upper right as shown in the picture. Integrated graphics will not have the same video card as shown nor a second cooling fan. The motherboards are pinned out to support the fans as well as the base which has a open air flow vent.

    techforkids -

  16. Za2umFBkiTWSUMl5
    Za2umFBkiTWSUMl5
    oF5ohXTRDZUUhrTH

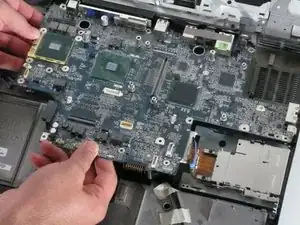

    • Remove the four to six screws holding the motherboard to the chassis.

    • Once unscrewed, carefully angle the board to disengage the I/O ports from the side of the chassis.

  17. xjHkM3nCFiIysdJL
    xjHkM3nCFiIysdJL
    DQLkI2cjf5hrKYIm
    rsTFwBY2FqAyCc6m
    • Gently remove the motherboard from the laptop by simultaneously lifting and pulling away from the sides.

    • Once the motherboard is free, flip it over toward the laptop's screen and gently remove the black-and-white wire from the wireless card.

    • Once the wires are disconnected, pull them through the hole and completely remove the motherboard from the computer.

  18. WFwo254fouYKhmJS
    WFwo254fouYKhmJS
    upME3U3gUWW6VYnq
    Dehny5C6Rv4BtgZf
    • Next, lower the replacement board into position, aligning the I/O ports with the chassis openings. Reattach all of the wires.

    • Reinstall all the motherboard screws snugly, but without overtightening.

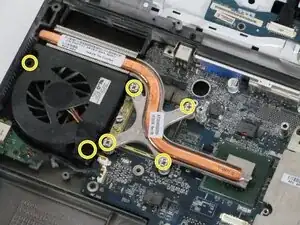

    • Carefully place the fan and heat sink assemblies back down and tighten the screws in the numbered order to ensure even pressure.

Conclusão

To reassemble your device, follow these instructions in reverse order.
