Bose SoundLink Color II Batterie Replacement

Escrito Por: yellowjellyfish
  • Comentários: 13
Bose SoundLink Color II Batterie Replacement

Dificuldade

Modérée

Passos

7

Tempo necessário

1 heure

Introdução

As any device with a battery, the Bose SoundLink Color II will need a battery replacement once the battery no longer has the expected capacity.

However, because this speaker is waterproof, this task is not straightforward.

The following steps will guide you through the process of replacing the battery.
Keep in mind that waterproofness cannot be guaranteed once your device has been disassemble, but it is better than replacing the whole speaker no ?

  1. XAT4cbj5SrnoIF3N

    • Commencez par tirer sur les bords extérieurs de la partie en caoutchouc sur le dessous de l'enceinte.

    • Notez qu'elle ne se détachera pas complètement de l'enceinte.

  2. JX3FNIcs62SItkVP
    JX3FNIcs62SItkVP
    GQ4aeD55r1SiLwot

    • Faites levier entre la base en plastique dur noir et l'enveloppe en caoutchouc coloré de votre enceinte.

    • Le dessous de l'enceinte se déclipe, et vous avez accès aux anneaux qui maintiennent l'enveloppe colorée.

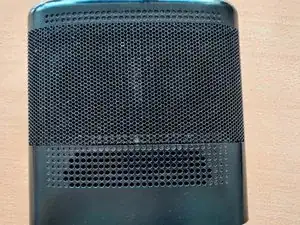

  3. wQWrcwljVGxnKequ

    • Tirez sur l'enveloppe colorée, en la repliant sur elle même vers l'extérieur.

    • En enlevant l'enveloppe, la mousse de protection du micro sera endommagée, la résistance à l'eau en sera impactée.

    There is a waterproof/resistant double-faced tape about 3/16ths wide lining the perimeter of the top of the speaker and in a circle around the microphone. By removing the cover, the seal will be damaged when you peel it away from the tape. After this the tape is no longer tacky. You will need either thin heavy duty double-face tape or glue that will adhere to the silicone cover or in my case, I am attempting to use waterproof silicone caulk to follow the same line to keep it waterproof.

    paul ramirez -

  4. gHjg2wDWmQkABb4j
    gHjg2wDWmQkABb4j
    oVvjuaoHAYcCgYYE

    • Enlevez les 7 vis au dos de l'enceinte.

    • Et vous accédez à l'intérieur de l'enceinte (la batterie a déjà été remplacée dans la photo présentée).

    What screwdriver do you need to remove these screws?

    bcadogan -

    Hello, I think it was Tamper Resistant TORX screwdriver.

    yellowjellyfish -

    I used a T10 torx bit.

    martin8777 -

    Caution: the Amazon link provided links to a set of proper security torx bits, BUT, they are short on 1/4” sockets, which will be too wide to enter the depth of the narrow holes that the screws are set in. The screw are set in about 3/4”-1” in depth.

    Dean Banfield -

  5. hCROkIiUVOHiCBSs

    • Découpez proprement la mousse et l'enveloppe de la batterie.

    • La mousse et l'enveloppe seront utilisées pour le remontage (afin d'éviter les vibrations).

    • Faites attention à ne pas percer la batterie, au risque qu'elle prenne feu.

    What type of battery?

    Romeo Ebrado -

    Am in Uganda how can I be able to buy the Bose Volts to 20 volts

    sanya george -

  6. B5h4Ho12Eyv3VG4Y

    • Dessoudez les deux pattes de la batterie et sortez la batterie.

    Compraste alguna marca en específico?

    Alejandro Montilva -

  7. HPTgheJFXGSJhjKM

    • Soudez la nouvelle batterie, et remettez l'enveloppe avec la mousse en tenant le tout avec du scotch.

    • Pour le remontage, suivez ce guide, en sens inverse.

Conclusão

Pour réassembler votre appareil, suivez les instructions dans l'ordre inverse.

Autor(a)

yellowjellyfish

Membro desde: 01/10/21

734 Reputação

4 comentários

Please be advised that the Bose support website has a firmware update that fixes some battery issues. I took my dead - non-charging Soundlink Color II apart and then found the website and fixed the issue with the firmware update! The update website is located @ http://btu.bose.com

paul ramirez -

Beware that, after the battery gets undervolted (like 2.4V), the device does not seem to accept an externally charged battery and continues to act dead, until it finds some form of comfort over its USB input. Not from a dumb 5V power supply, but from an USB charger or PC supporting some level of power delivery extension, and an appropriately wired lead.

Stein Somers -

Please list type of battery and where to find it it took me a while to find it

Bootyclapper69 -

Guide was good, the battery pcb i found in my unit was a bit different and had metal strips soldered to the board and welded to the battery.

Seifeldin Hashem -
