This guide documents the replacement of the power switch on the Bissell Featherweight Lightweight vacuum cleaner. A faulty power switch in the vacuum renders the device unusable. When performing the repair please ensure that the device is not connected to a power source as the repair involves working with exposed metal connections.
Ferramentas
-
-

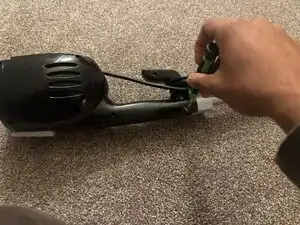

Unscrew the electronic housing screws using a Phillips #00 screwdriver.
-
Remove the front panel.
-
-
-

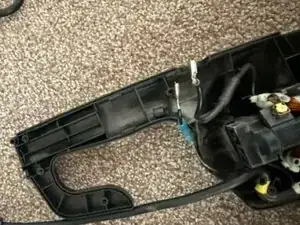

Identify the switch within the internal electronics.
-

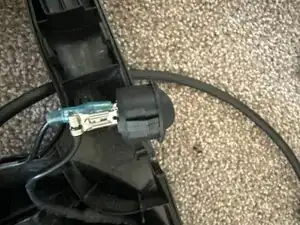

The switch is connected to the rest of the circuit via two terminals with one terminal covered by a blue heat shrink tube.
-
-
-
Remove the switch from the clasps. Use a spudger to push down on the metal tab and pull the switch terminal away.
-
When removing the blue heat shrink side just pull the heat shrink below the metal terminal.
-
-
-
Reattach the outer panel of the electronic housing.
-
Ensure that the switch is flush against both sides.
-
-
-
Reattach the electronics to the filter component of the vacuum and test the switch by powering the vacuum and turning it on and off.
-
