Automatic Coffee Machine Cecotec Power Matic-Ccino 7000 or Rooma RM-A7 Disassembly

Escrito Por: Egas
  • Comentários: 6
Automatic Coffee Machine Cecotec Power Matic-Ccino 7000 or Rooma RM-A7 Disassembly

Dificuldade

Easy

Passos

5

Tempo necessário

15 minutes

Introdução

This is a basic guide to disassembling your Cecotec Power Matic-Ccino 7000 or Rooma RM-A7 to access the core components of the appliance.  If you are noticing issues with the burr grinder, water pump, heating element, control board, or any other component on the interior of the device, this guide will instruct you on how to access those parts.  This will also allow you to open up the machine for cleaning and descaling of the brewing components.

  1. 4RVBhrlPXtdUudEr
    4RVBhrlPXtdUudEr
    iHiKI4JPXFKbU4P2

    • Using a T10 screwdriver, remove the eight screws located on the rear panel of the device (4 towards the bottom, and 4 towards the top).

  2. nolqXGQLg6bhK1WV
    nolqXGQLg6bhK1WV
    1vNCoYYgMo33bJvV

    • Unscrew one PH2 screw.

    • Use a spudger or a thin curved tool such as a dental pick to remove the bean hopper of the burr grinder.

    • Remove the grind selector by pulling the dial directly away from the machine which will remove it from the housing.

  3. 4OIcaVp1xkmeUfEv
    4OIcaVp1xkmeUfEv
    svPPQZH5rWNTNSCq

    • The Hex screw must be unscrewed in the clockwise direction. Failure to do so could result in damage of the grinding mechanism.

    • Unscrew the one 4mm Hex in a clockwise fashion and remove the black plastic cover over the burrset.

    • Remove the black plastic cover over the burr set.

    • The burr set should not be completely visible.

  4. gBL11VXFCFJOuHde
    gBL11VXFCFJOuHde
    MvENGCXE3IFAetaU

    • Unscrew the three PH2 screws.

    • Slide the top panel backwards to remove it.

  5. ThnZPD3OCputBAkB
    ThnZPD3OCputBAkB
    RhdGpEyBIrcYTBwB
    VE6lDVWjWbhvFIMK

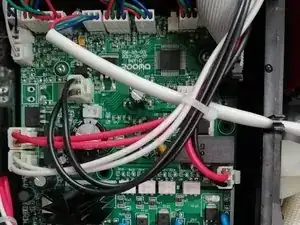

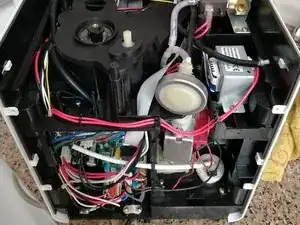

    • Now you should have access to the internal components of the appliance.

    Amazing this was very helpful! To bad there isn't more on how to dissemble the coffee grinder unit to make sure that prolonged use doesn't affect the main grinding mechanism

    Alex B -

    Hi Alex, can you do a favor for me please?

    saleh marabeh -

    Hi Dears,

    I bought same this machine from someone and i have an issue; the coffee not coming out, i seen missing sensor behind flowmeter, is it the reason for the problem i have? i clean all pipes and the water or coffee still not out to cup. please guide me what to do to fix this issue. TIA

    saleh marabeh -

Conclusão

To reassemble your device, follow these instructions in reverse order.
