This guide demonstrates how to replace a coupler on an Aethern Ready to Roll Railcar (ATH71981). The ATH71981 is an HO Scale 65-foot (65') Mill Gondola model train.
The coupler connects one railcar to another, allowing them to be towed by a locomotive. The coupler may need to be replaced if it's damaged and can't connect to other couplers.
This guide covers the replacement of a damaged coupler and aims to extend the model's lifespan, save you money, and reduce potential waste.
Ferramentas
-
-
Flip the railcar upside down so the bottom is facing up.
-
Use a Phillips #0 screwdriver to remove the 4.3 mm screw that holds the truck in place.
-
Remove the truck from the bottom of the train.
-
-
-
Use a Phillips #0 screwdriver to remove the 4.3 mm screw from the coupler housing from the frame.
-
Remove the coupler housing.
-
-
-
Use a plastic spudger to remove the coupler housing backplate from the main coupler housing.
-
-
-
Remove the current coupler from the main housing section.
-
Put the new coupler inside the housing with the air hose on the opposite side of the open end.
-

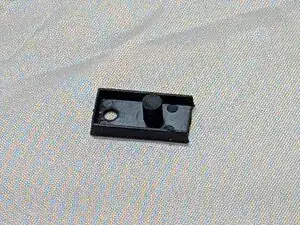

Reattach the coupler housing backplate to main coupler housing.
-
-
-
Attach the coupler housing to the frame and screw it in place using a Phillips #0 Screwdriver.
-
By completing this repair, you have successfully extended the lifespan of your Athearn Ready-to-Roll railcairs. You have saved money and reduced potential waste.
