Acer Swift X N20C12 Motherboard Replacement

Escrito Por: Hector
  • Comentários: 0
Acer Swift X N20C12 Motherboard Replacement

Dificuldade

Moderate

Passos

18

Tempo necessário

20 minutes

Introdução

This guide shows how to replace the motherboard in the Acer Swift X N20C12. This guide takes the longest because the motherboard cannot be removed unless multiple other components are removed first.

The motherboard is the component that links all of the other components together ex. IO board, CPU, etc. On laptops, the biggest and probably one of the few reasons for replacing the motherboard is physical damage.

  1. 5wXKAoPohC2uDHiU

    • Use a T5 Torx screwdriver to remove the eleven screws that secure the lower case.

  2. 6NgTgxIHJRS2vCGl

    • Insert an opening pick in the seam between the lower case and chassis.

    • Slide the pick around the perimeter while prying until the lower case releases.

    • Remove the lower case.

  3. FQ1OLCPLbUgtUPss

    • The SSD is located to the right of the battery.

  4. ZXpKIVuV65S6Qxmf

    • Use a Phillips screwdriver end to remove the 5 mm screw that secures the SSD.

  5. XUMRiLtgKIqZJfHj

    • Gently remove the SSD from the computer by pulling it straight out of its motherboard socket.

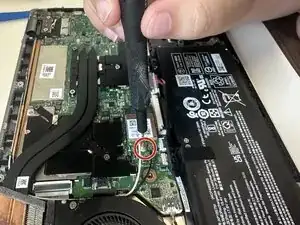

  6. kuANSubkrn4lYaG1

    • Use a Phillips screwdriver to remove the 5 mm screw that secures the Wi-Fi card.

  7. pBJCNZfeCmx1pGr5

    • Use the pointed end of a spudger to lift and disconnect the two Wi-Fi card antenna cables.

    • When reconnecting the black and white wires, notice the markings that indicate which color wire goes where.

    • Take the Wi-Fi card out by gently pulling it away from the motherboard connector.

  8. MiJicE1NjH2W2CGD
    MiJicE1NjH2W2CGD
    SH3RCBMw3VLYHo1D

    • Use a Phillips #00 screwdriver to remove the five 5 mm screws that secure the heatsink.

    • When reinstalling the heatsink, replace the screws in the numbered order as indicated on the heatsink.

  9. EsTotCjyZHFyQOb5

    • Hold the heatsink firmly with your fingers and lift it straight up to remove it from the laptop.

  10. 5BEKFZpUNAVyOlUc
    5BEKFZpUNAVyOlUc
    wuZQCMdtAdJLtwqa

    • Lay the heatsink with the thermal paste up so you don't stain your surface.

    • Instead of replacing, if you want to repaste the laptop, clean the thermal paste and pads off of the heatsink and motherboard components with isopropyl alcohol. Follow this guide for more information.

    • When applying the thermal paste/pads on the motherboard components, making sure not to apply too much or little. Do NOT apply the thermal paste/pads on the heatsink.

  11. xd2ZZts423RGTxP5

    • Gently disconnect the white I/O board connector by pulling it directly out of its socket.

    • With this type of connector, "walk" the cable out of its socket with the spudger.

  12. OKkhjIMZdHkTuNIP
    OKkhjIMZdHkTuNIP
    1VHhY3imxvx6mSBa

    • Use a spudger to flip up the black ZIF locking flap.

    • Disconnect the ribbon cable.

  13. GMBNFyKYBp5Zqo1n

    • Remove the single 5 mm screw on the I/O board with a Phillips screwdriver.

  14. aGCMEacWhQOiWUcY

    • Gently remove the I/O board from the laptop.

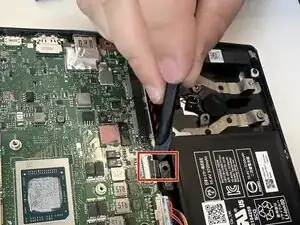

  15. hCiUstOCdwiOLEAi

    • Use a spudger to release the black ZIF connector above the battery.

    • Disconnect the ribbon cable.

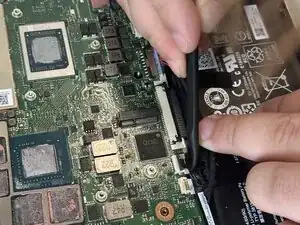

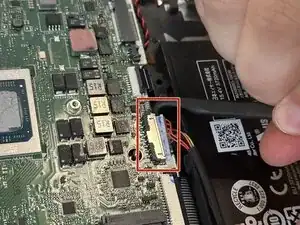

  16. GPcdX6lKorYVXKZV
    GPcdX6lKorYVXKZV
    csdlVITKlQJtd6ai
    2AgAoxMs4PNtFhO4

    • Disconnect the remaining cables from their motherboard sockets.

  17. 1RgnxuQZRc21dpkf
    1RgnxuQZRc21dpkf
    GaSyTYX6Or4hKdwf

    • Remove the 5 mm screws on the two hinges with a Phillips screwdriver.

    • Lift the hinges perpendicular to the motherboard.

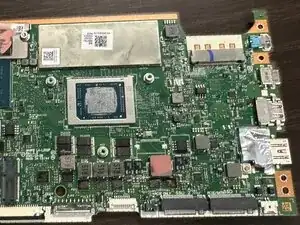

  18. 5OwnVLfmcoCe1f21

    • Gently lift the motherboard out.

    • You may have to wiggle it slightly since it is enclosed in a tight space.

Conclusão

To reassemble your device, follow the above steps in reverse order.
