Introdução

Replacing your engine air filter is one of the simplest and most important maintenance tasks you can do for your 2020 Toyota Tacoma SR. The air filter prevents dirt, dust, and other debris from entering the engine, where they could cause damage or reduce performance. Over time, the filter becomes clogged with contaminants, which restricts airflow and makes the engine work harder. This can lead to reduced fuel economy, sluggish acceleration, and unnecessary wear on engine components.

You don’t need any special tools or advanced mechanical skills to replace the air filter—just a new filter that fits your Tacoma and a few minutes of your time. It’s a straightforward job you can safely do at home with minimal risk, though it’s always smart to let the engine cool down before working under the hood.

Regularly replacing the air filter—typically every 15,000 to 30,000 miles, depending on your driving conditions—will help your truck run more efficiently and extend its lifespan. This guide will walk you through each step to ensure a proper and secure installation.

  1. Lf2JXQoWybv3vsTy
    Lf2JXQoWybv3vsTy
    nNlSGXtDVENSkDig
    SCQAF6fxyvcwsKON

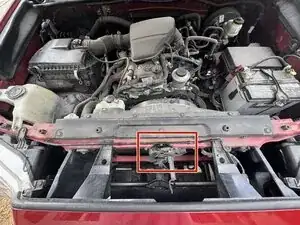

    • Pull the hood lever that is located on the driver’s side under the steering wheel to release the hood.

    • Move the secondary latch lever to the left to raise the hood.

    • Open the hood.

  2. XqrJfmWWNivif62K
    XqrJfmWWNivif62K
    QlLUotYZGUZicC1h

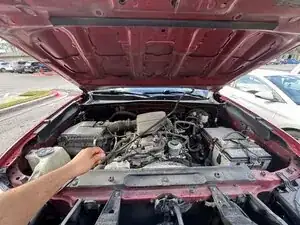

    • Lift the hood prop rod at the front of the hood from the retaining clip.

    • Raise it toward the left side of the vehicle until it is in a vertical position.

  3. HMQMT5vajlgK6SHX
    HMQMT5vajlgK6SHX
    X5dqkEFATumWlJWZ
    • Position the hood prop rod into the mounting hole at the top of the truck’s hood.

  4. swAVvImkrvhrE4gF
    swAVvImkrvhrE4gF
    NNjYMrYgJ5H2EG6B
    u46OhQ2qlJsHbAxM

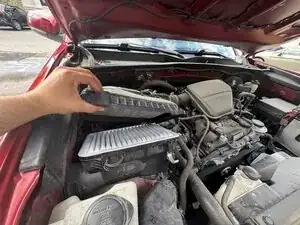

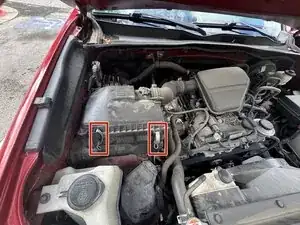

    • Pull both silver clips upward from the bottom to release the engine air filter housing cover.

    • Pull the engine air filter housing cover straight up to remove it.

    • There are two sliding clips; be careful not to bend or damage them by pulling incorrectly.

  5. NMMGScjLa3pAZtVN
    • Lift out the old engine air filter and set it aside.

  6. Jm1BSmHT3LC5iRY3
    • Make sure the air filter housing is clean. If there is dirt or debris, remove it before installing the new filter.

  7. IwDkMCKyFLwqla5m
    IwDkMCKyFLwqla5m
    XlUeJVacE3IZWNYe

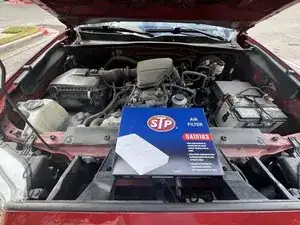

    • Install the new filter with the deeper, more heavily pleated side facing down and the flatter side facing up.

  8. JQGgBFMb4CWjMtS1
    JQGgBFMb4CWjMtS1
    OMlTjaRExplKsOXF
    vHsx6jvAibAiIByx
    • Slide both clips at the back of the housing.

    • Slide the clip on the right side.

    • Secure the two silver clips on the front of the engine filter cover.

  9. gy21AQVpEliOCVVo
    gy21AQVpEliOCVVo
    EBaMYPoFSISZtwNZ
    VJPdYFfJwJH45PdR

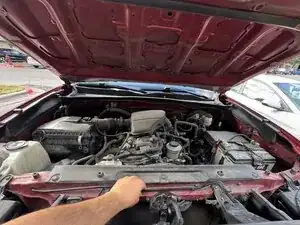

    • Remove the hood prop rod from the slot and return it to its horizontal position, securing it with the clip.

    • Close the hood gently from about one inch above the latch.

    • You may press down lightly to ensure it is fully closed.
