2015 Ford C-Max Windshield Wiper Replacement

Escrito Por: Sean Lawrence
  • Comentários: 0
2015 Ford C-Max Windshield Wiper Replacement

Dificuldade

Very easy

Passos

12

Tempo necessário

10 minutes

Introdução

If your 2015 Ford C-Max (also applicable to 2013–2018 models) wipers are leaving streaks, skipping across the glass, or failing to clear rain effectively, use this guide to replace the front windshield wiper blades.

The front windshield wipers maintain clear visibility by removing rain, snow, and debris from the windshield. Over time, the rubber blades can wear out, crack, or lose flexibility, leading to poor contact with the glass and reduced visibility in wet conditions.

This guide will show you how to safely remove the old wiper blades and install new ones without damaging the wiper arms or windshield. For reference, consult your owner’s manual for the correct wiper blade sizes and compatible replacements.

  1. wUPYTEOhveM6wEMK
    wUPYTEOhveM6wEMK
    EgY4rOAVekJZldmF

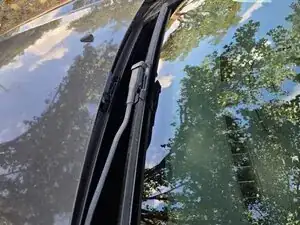

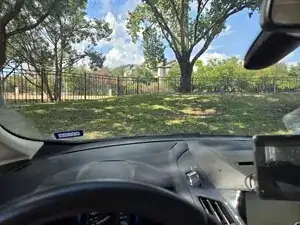

    • The default wiper position keeps the blades tucked beneath the hood, making them difficult to access. These images show the wipers in their stowed position, viewed from both inside and outside the vehicle.

  2. PhuOYdgWVOBv1QAP

    • Press the ignition button without pressing the brake pedal to turn on the vehicle’s auxiliary power.

    • This powers the electronics without starting the engine.

  3. Qp6TdTyQbJbibmOA
    Qp6TdTyQbJbibmOA
    6ondFcUGAyb1JDgI
    ebCLuiUH1rSQOgUd

    • Within three seconds of turning on auxiliary power, push the wiper control stalk on the right side of the steering wheel downward once to activate the wipers.

    • This moves them into service mode, positioning the blades vertically for easier access.

    • Once they stop moving, press the ignition button again to turn the car off.

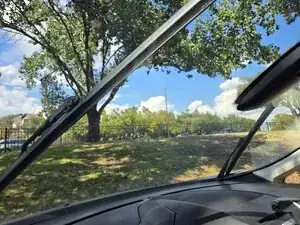

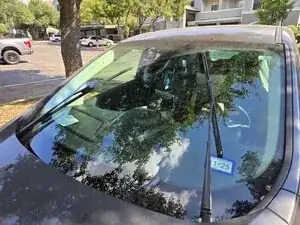

    • The second and third images show the wipers in the service position.

  4. DjFNO6xobyYOERZq
    DjFNO6xobyYOERZq
    k53BtWiSlkPPULdG

    • Squeeze the release clips on the wiper adapter while swiveling the clasp outward to unlock it.

    • Perform this action on both front wipers.

    • The first image shows where to press, and the second shows the adapter flipped open.

    • These adapter instructions are specific to the Rain-X Rugged XL wipers. Follow your specific wiper manufacturer's instructions.

  5. MKrMAwXPXLcLNjqb
    MKrMAwXPXLcLNjqb
    3jgdStM4xAWNThKX

    • Squeeze the sides of the adapter to release it.

    • Then lift it straight up to remove.

    • Perform this action on both front wipers.

    • The first image shows where to squeeze, and the second shows the adapter being lifted off.

  6. vyiKVHLrm1yqEGbP

    • Pull the blue insert straight out from the adapter to remove it.

    • Perform this action on both front wipers.

  7. tgNHbPTGTXFHIVic
    tgNHbPTGTXFHIVic
    OlqneoLRbvF4emos
    4OEFYFCxjpVuRBWo

    • Squeeze the pressure release tabs and rotate the wiper blade outward to unlock it.

    • Once released, lift the blade off the mounting tab to remove it completely.

  8. HveJruWQx2RVqwEh
    HveJruWQx2RVqwEh
    sE6oMUSrJuAEgNTD
    VlJvLODYnalqVRPK

    • Align the bottom edge of the new wiper as shown in the first image.

    • Seat the wiper fully onto the mounting tab, as seen in the second image.

    • Close the top clasp to secure the new wiper in place.

  9. sJWQU5ZJ6uRasOnH
    sJWQU5ZJ6uRasOnH
    XcKOFW33cRHpsI55
    6Z3ASCGnFT2NIK2N

    • Squeeze the pressure tabs on the passenger-side wiper and rotate the blade toward the windshield to release it.

    • Once released, lift the old wiper off to remove it completely.

    • This step is identical to the driver's side front wiper.

  10. fPj6vwlTgwfgdilY
    fPj6vwlTgwfgdilY
    x1CLi1miFhtTcYHL
    LbRWNOXtJjjVQEpW

    • Align the bottom edge of the new passenger-side wiper as shown in the first image.

    • Seat the wiper fully onto the mounting tab, as seen in the second image.

    • Close the top clasp to secure the new wiper in place.

    • This step is identical to the driver's side front wiper.

  11. stXotvpZWJtuKrwI

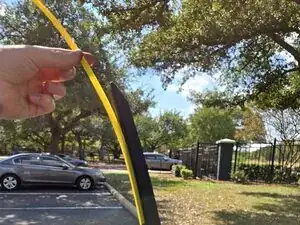

    • Remove the yellow protective covers from your new wiper blades.

    • Place the wipers gently on the windshield. Do not let the wipers slam back against the windshield.

    • Perform this step on both the driver's side and passenger side wipers.

  12. IoZhBMLAfcMMdHxQ
    IoZhBMLAfcMMdHxQ
    HilvpOtelZbRJWQr

    • Start the car by pressing the brake pedal and the ignition.

    • Push the wiper control stalk downward (on the right side of the steering wheel) to activate the wipers. This will move the blades into their stowed position.

    • Turn the car off by pressing the ignition button again once the blades are stowed.

Conclusão

You now have new wiper blades! You're free to enjoy a clear driving experience in all kinds of weather.
