2014-Present Kia Sedona Cargo Lamp Assembly Replacement

Escrito Por: iRobot
  • Comentários: 0
2014-Present Kia Sedona Cargo Lamp Assembly Replacement

Dificuldade

Moderate

Passos

8

Tempo necessário

5 - 20 minutes

Introdução

This guide shows how to remove and replace the cargo lamp assembly in a Kia Carnival. The assembly includes the bulb holder and the switch.

Don't do this repair with the car parked on a slope! The ceiling clips may roll into an irretrievable area during the repair if you do.

The guide is written with a 2025 Kia Carnival SX Hybrid.

  1. eBcW1tvfgy6Du16l

    • The lens cover has six plastic tabs that hold it in place.

    • The two rear tabs are larger and harder to unclip.

  2. jfIX1UYWNN23QpJN
    jfIX1UYWNN23QpJN
    XicvndlW6IQHCGh2
    DswQf3C6ZqC4asAp

    • These tabs are very stiff. Take your time and be careful not to scratch the plastic. You may need to use a bit of force to unclip these.

    • Insert a metal spudger or a small flathead screwdriver into the front seam near the toggle switch.

    • Pry to release the front tabs.

    • Use a spudger or Jimmy to pry and release the side tabs.

    • Tilt and wiggle the lens cover until the rear tabs release.

    • Remove the lens cover and the gray cover plate behind it.

  3. GVEctkyobjTL5jaF

    • Use a Phillips screwdriver to remove the two screws securing the lamp assembly.

  4. aPqsmjxCZfaQaPgg
    aPqsmjxCZfaQaPgg
    iHZGIRdJ5Z2cHlLW
    NnMFDtEBEPNmgdGU

    • Grab the front edge of the assembly and pull downwards to unclip the edge.

    • Pull the entire assembly towards you to release the rear tabs.

    • Squeeze and disconnect the wire harness from the lamp assembly.

    • Remove the lamp assembly.

  5. 1GFxcwgIX3PtQ4BQ
    1GFxcwgIX3PtQ4BQ
    kfMg3h4ZWjJNQII3

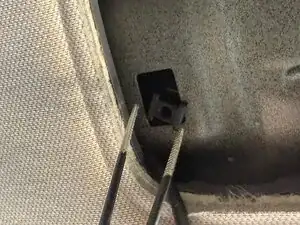

    • Use tweezers to carefully recover the two plastic clips from the ceiling cutouts.

  6. BHLj5TSx1p1YawVQ

    • The remaining steps show how to install the cargo lamp assembly.

    • Place the two loose clips in place on the underside of the lamp assembly.

    • Use a Phillips screwdriver to install the two screws to secure the clips onto the lamp assembly.

  7. besLaHTe5fVuZ2o6
    besLaHTe5fVuZ2o6
    keFWupYUgnRWUELS
    iGImpEpX6SOhRXWZ

    • Slide the lamp assembly's rear tabs into their cutouts in the ceiling.

    • Press the lamp assembly into the ceiling until all clips click into place.

  8. WHF4sViNhbXyX16i
    WHF4sViNhbXyX16i
    SvdVNCDnwOXaQxCW
    XvoYTiPOIqkwlNGe

    • Align and stack the lens cover and gray cover plate together

    • Insert the two larger rear tabs into their recesses.

    • Press the covers into place until all tabs click into place.
