Introdução

This guide will assist owners with replacing the engine air filter in the 2008 Suzuki Grand Vitara.

Keeping your engine's air filter clean is essential for smooth car operation and a longer engine lifespan. When an air filter gets clogged with dust and debris, it restricts airflow to the engine. This will reduce engine power and shorten your vehicle's lifespan.

Suzuki recommends replacing the air filter every 30,000 miles. If you take frequent road trips or drive on rough and dusty roads, Suzuki recommends replacing the air filter every 15,000 miles.

Replacing the filter is easy and inexpensive repair that can save your car's engine from long-term damage.

  1. 65obrEea4SLHwFNY
    65obrEea4SLHwFNY
    PsxqBXvhgQRsYrjZ

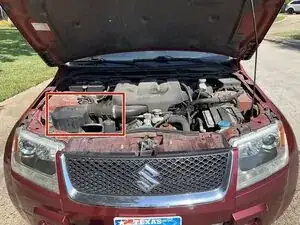

    • Open the car hood.

    • Remove the top of the engine air filter housing.

  2. 1wfpZQRmorP2q4Qk
    1wfpZQRmorP2q4Qk
    GJRjHcqTHY546D3A
    • Pull out the mass air flow sensor.

  3. sNmkRZ3gsUWD5rRy
    sNmkRZ3gsUWD5rRy
    UL5r3AnLrF6ioEEZ
    • Pull open the four (4) metal latches on the housing cover.

    • There is one (1) latch located on the back.

  4. AoiNWRUIKhQbHOPo
    AoiNWRUIKhQbHOPo
    GBFE2sVqpxeGsRVP
    • Lift up the housing cover.

    • Pull out the old air filter.

  5. blvKHqPtBYVTkfor
    blvKHqPtBYVTkfor
    CesR4gHTvWQhaOSo
    EYIsKjgSTh1njJXP

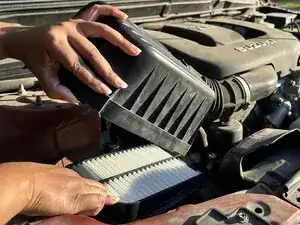

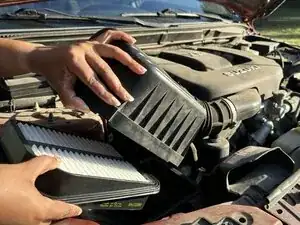

    • Insert the new air filter.

  6. lUORVMDHMn4e3Qmg

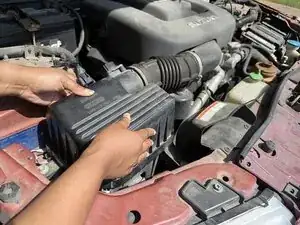

    • Lower the housing cover.

  7. m2jjjGI4FpKK6lpU
    m2jjjGI4FpKK6lpU
    Ssy6MiZBuduynVU1
    YuQrhB3LDiS5ovi2
    • Push the four (4) metal latches closed until they click.

  8. LumEMwPwlcHrtmVA
    LumEMwPwlcHrtmVA
    3qCqvQFOBrow6IER
    • Push the mass air flow sensor back into place.
