Background

The Zone 301 headset was released as part of Logitech’s Zone headset line. Hardware wise, it's identical to the Zone 300. It features Bluetooth connectivity, along with dual noise-reducing microphones for improved voice clarity. The headset is made with post-consumer recycled plastic and comes in graphite, off-white, and rose.

Identification

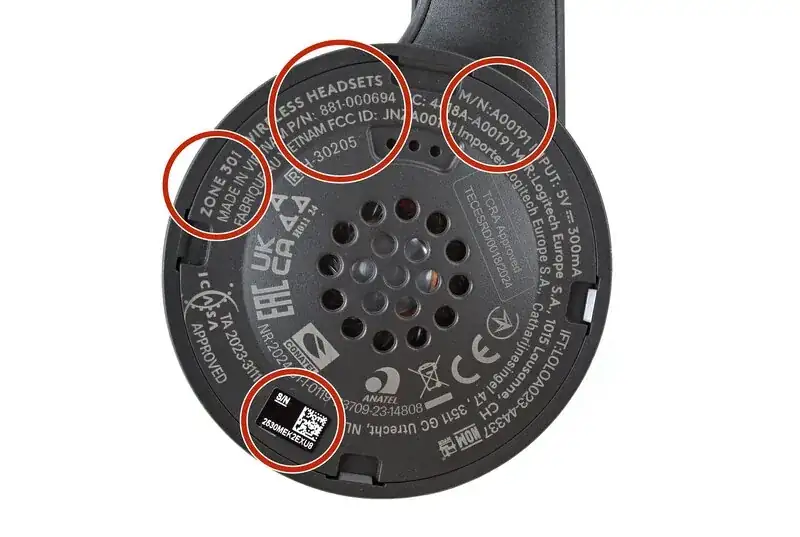

The Model Name, Model Number (M/N), Part Number (P/N), and Serial Number (S/N) are found under the right ear pad. The Zone 301 has M/N A00191 and the graphite color has P/N 881-000694.

Block Image

Technical Specifications

Headphones

  • Frequency response (music mode): 50-20KHz
  • Frequency response (talk mode): 100-7KHz
  • Audio Drivers: 1.18 in (30 mm)

Microphone

  • Dual beamforming mics with background noise reduction
  • Frequency response: 100 Hz–7 KHz

Wireless Technology

  • Bluetooth 5.3

Battery

  • Lithium-ion battery
  • Battery life: up to 16 hours (talk time)
  • Battery life: up to 20 hours (listening time)
  • USB-C charging port

Weight

  • 4.3 oz (122 g)
